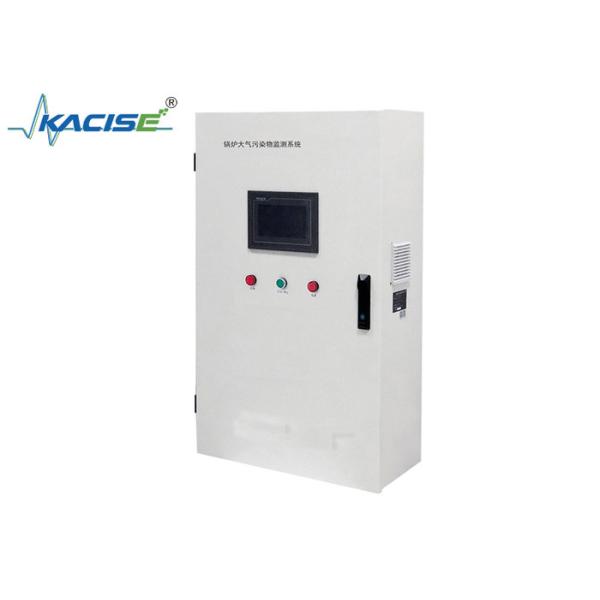

KGD-YQ-527 Boiler Flue Gas Emission Monitoring System with UV-DOAS Technology and Automated Sampling Pretreatment for High Accuracy Measurements
KGD-YQ-527 Boiler Flue Gas Emission Monitoring System with UV-DOAS Technology and Automated Sampling Pretreatment for High Accuracy Measurements
Specifications
Brand Name :
KACISE
Model Number :
KGD-YQ-527
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Measurement Components :
NO, O₂, CO, CO₂, SO₂ (Optional)
Measurement Principle :
NOₓ, SO₂: UV - DOAS; O₂: ECD; CO, CO₂, CH₄: NDIR
Resolution :
NOₓ, SO₂, CO: 1mg/m³; CO₂, O₂: 0.01%
Zero - point Drift :
NOₓ, SO₂: 1%F.S./24h; CO, CO₂, O₂: 2%F.S./24h
Measurement Range :
NOₓ, SO₂: 0 - 100mg/m³; CO₂, O₂: 0 - 25%; CO: 0 - 5%
Accuracy :
NOₓ, SO₂, CO, CO₂: ± 2%F.S.; O₂: ≤ ± 2%F.S.
Description

Boiler Flue Gas Emission Monitoring System (High - end Version) KGD - YQ - 527 for Boiler Air Pollutant Emission and Energy - efficiency Control

Product Introduction

The KGD - YQ - 527 Boiler Flue Gas Emission Monitoring System (High - end Version) is based on ultraviolet differential absorption spectroscopy gas analysis technology, non - dispersive infrared gas analysis technology, and long - life electrochemical sensing technology. It is equipped with an integrated and automated sampling pretreatment unit and control unit, which can simultaneously measure the gas concentrations of NO, SO₂, O₂, CO, and CO₂ in flue gas online. It is an online monitoring device specifically designed for boiler air pollutant emission and energy - efficiency control, meeting the regulatory requirements of national and local environmental protection departments.

KGD-YQ-527 Boiler Flue Gas Emission Monitoring System with UV-DOAS Technology and Automated Sampling Pretreatment for High Accuracy Measurements

Product Features

  • Specifically designed for monitoring flue gas emissions from small - scale gas - fired boilers.
  • Using UV - DOAS to measure NOₓ.
  • Ultra - low range design with high measurement accuracy.
  • Monitoring combustion efficiency to reduce energy consumption.
  • Fully automated control for easy operation

Technical Parameters

Measurement Components NO, O₂, CO, CO₂, SO₂ (Optional)
Measurement Principle NOₓ, SO₂: UV - DOAS; O₂: ECD; CO, CO₂, CH₄: NDIR
Resolution NOₓ, SO₂, CO: 1mg/m³; CO₂, O₂: 0.01%
Zero - point Drift NOₓ, SO₂: 1%F.S./24h; CO, CO₂, O₂: 2%F.S./24h
Measurement Range NOₓ, SO₂: 0 - 100mg/m³; CO₂, O₂: 0 - 25%; CO: 0 - 5%
Accuracy NOₓ, SO₂, CO, CO₂: ± 2%F.S.; O₂: ≤ ± 2%F.S.
Response Time ≤ 30s
Working Parameters
Working Power Supply 220V AC ± 20%, 50Hz ± 1Hz
Display 7 - inch large - screen capacitive touchscreen
Interface Signal Interface signal
Communication Standard RS232, RS485, DC(4 - 20)mA current output, one - way audible and visual alarm output
Functional Configuration With data storage function (can store three - year historical data), with USB data export interface
