Ultraviolet Flue Gas Sensor Module with Differential Absorption for Direct NO₂ Measurement and Modular Design
Ultraviolet Flue Gas Sensor Module with Differential Absorption for Direct NO₂ Measurement and Modular Design
Specifications
Brand Name :
KACISE
Model Number :
KGD-YQ-539
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Note :
Range can be customized
Linear Error :
≤ ± 2%F.S.
Repeatability :
≤ 2%
Zero - point/Range Drift :
≤ ± 2.5%F.S./7d
SO₂/NO Range :
0 - 100 - 2000ppm
NO₂ Range :
0 - 500 - 5000ppm
Description

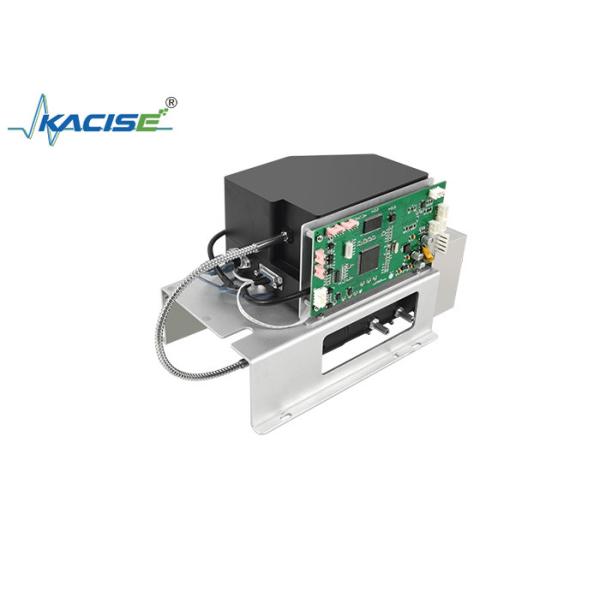

Ultraviolet Flue Gas Analysis Gas Sensor Module KGD - YQ - 539
Product Introduction

The KGD - YQ - 539 Ultraviolet Flue Gas Analysis Gas Sensor Module adopts high - precision ultraviolet differential absorption spectroscopy gas analysis technology. Its light source is a stable flashing xenon lamp. When light is transmitted in the gas, the differential absorption characteristic intensities generated by each molecule in the gas at different bands are used to deduce the gas concentration and type. With a unique algorithm, it features high sensitivity, a strong absorption signal, long service life, and good stability. It can accurately measure the gas concentrations of SO₂, NO, and NO₂.

Ultraviolet Flue Gas Sensor Module with Differential Absorption for Direct NO₂ Measurement and Modular Design
Product Features
  • Ultraviolet absorption differential method, suitable for ultra - low range monitoring.
  • Directly measures NO₂ without the need for a NOₓ converter.
  • High measurement accuracy, good stability, strong anti - interference ability, and not affected by moisture.
  • Modular design of the sensor, easy for integration.
  • Automatic temperature and pressure compensation.
Technical Parameters
Range SO₂/NO: 0 - 100 - 2000ppm
NO₂: 0 - 500 - 5000ppm
Note Range can be customized
Linear Error ≤ ± 2%F.S.
Repeatability ≤ 2%
Zero - point/Range Drift ≤ ± 2.5%F.S./7d
