High-Temperature UV Flue Gas Monitoring System with UV-DOAS Technology and Multi-Reflection Gas Cell for Accurate Gas Concentration Measurement
High-Temperature UV Flue Gas Monitoring System with UV-DOAS Technology and Multi-Reflection Gas Cell for Accurate Gas Concentration Measurement
Specifications
Model Number :
KGD-YQ-526
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Accuracy :
≤ ± 2%F.S.
Resolution :
0.1ppm
Repeatability :
≤ 1%
Response Time :
T90 ≤ 60S
Ambient Temperature :
(0 - 50) °C
Working Power Supply :
220V AC, 800W
Description

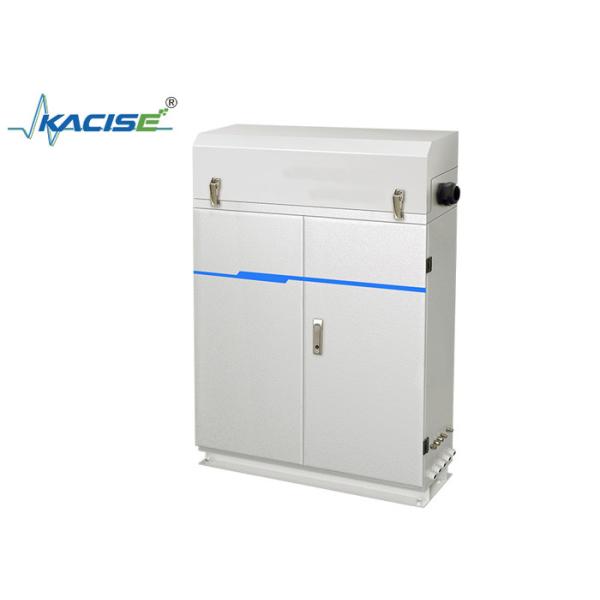

High - temperature UV Flue Gas Monitoring System KGD - YQ - 526
Product Introduction

The KGD - YQ - 526 High - temperature UV Flue Gas Monitoring System is based on advanced ultraviolet differential absorption spectroscopy gas analysis technology and can simultaneously measure the concentrations of gases such as SO₂, NO, and NH₃. It uses a multi - reflection gas cell with a low detection limit. The system is heated throughout the process, ensuring high measurement accuracy. It can be widely applied to monitor gas concentrations before and after flue gas desulfurization and denitrification in industrial chimneys and stationary pollution sources, accurately reflecting the changes in ammonia slip.

High-Temperature UV Flue Gas Monitoring System with UV-DOAS Technology and Multi-Reflection Gas Cell for Accurate Gas Concentration Measurement

Product Features
  • Using UV - DOAS technology to simultaneously measure the concentrations of SO₂, NO, and NH₃ gases with high measurement accuracy.
  • Ultra - low range measurement. Using a multi - reflection gas cell, it has a low detection limit.
  • The gas flow path is heated throughout the process, and low - adsorption materials and processing techniques are used to effectively avoid the loss of SO₂ and NH₃.
  • Extraction - type measurement, not affected by fluctuations in dust, temperature, and pressure inside the flue.
  • Built - in automatic correction algorithm to eliminate the interference of other gas components.
  • Automatic calibration, easy to operate and maintain.
  • Not limited by on - site installation conditions, with wide applications.
Technical Parameters
Measurement Components SO₂, NO, NH₃
Measurement Principle UV - DOAS
Measurement Range SO₂: 1000mg/m³; NO: 100mg/m³; NH₃: 20mg/m³ (Denitrification Outlet)
SO₂: 50mg/m³; NO: 50mg/m³; NH₃: 20mg/m³ (Discharge Outlet)
Accuracy ≤ ± 2%F.S.
Resolution 0.1ppm
Repeatability ≤ 1%
Response Time T90 ≤ 60S
Working Parameters
Ambient Temperature (0 - 50) °C
Working Power Supply 220V AC, 800W
Purge Gas Source (0.4 - 0.8) MPa Compressed Air
Interface Signal Interface signal
Communication RS485, RS232
Output Mode 4 - way 4 - 20mA output
8 - way relay output
