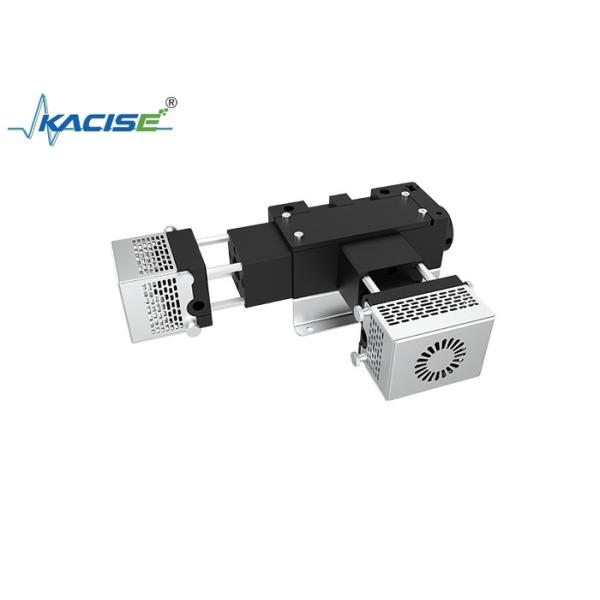

KGD - YQ - 540 Flue Gas Dust Sensor Module with High Sensitivity 0.01mg/m³ Modular Design and Ultra-Low Range
KGD - YQ - 540 Flue Gas Dust Sensor Module with High Sensitivity 0.01mg/m³ Modular Design and Ultra-Low Range
Specifications
Brand Name :
KACISE
Model Number :
KGD-YQ-540
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Measurement Principle :
Optical Scattering Principle
Measurement Range :
0 - 20mg/m³
Indication Error :
≤ ± 10%F.S.
Minimum Detection Limit :
0.01mg/m³
Zero - point Drift :
± 2%F.S./168h
Span Point Drift :
± 2%F.S./168h
Description
Flue Gas Dust Sensor Module KGD - YQ - 540
Product Introduction

The KGD - YQ - 540 Flue Gas Dust Sensor Module adopts the optical scattering principle and can accurately detect the mass concentration of suspended particulate matter in the flue gas per unit volume. When the dust particles in the sample gas pass through the laser beam in the constant - temperature measuring gas cell, a light scattering signal is generated. Then, the photoelectric converter converts the scattered light signal into an electrical signal, and the real - time particulate matter mass concentration data is obtained by calculating the relationship between the signal intensity and the concentration. The product complies with the detection requirements of the national standard HJ 76 - 2017 "Technical Requirements and Detection Methods for Continuous Emission Monitoring Systems of Flue Gas (SO₂, NOₓ, Particulate Matter) from Stationary Pollution Sources.

KGD - YQ - 540 Flue Gas Dust Sensor Module with High Sensitivity 0.01mg/m³ Modular Design and Ultra-Low Range

Product Features
  • High sensitivity, with a minimum detection limit of up to 0.01mg/m³.
  • Modular design, compact structure, and easy to install.
  • Adopts an ultra - low range design, suitable for low - concentration flue gas detection.
  • Constant - temperature heating effectively prevents condensation.
Technical Parameters
Measurement Principle Optical Scattering Principle
Measurement Range 0 - 20mg/m³
Indication Error ≤ ± 10%F.S.
Minimum Detection Limit 0.01mg/m³
Zero - point Drift ± 2%F.S./168h
Span Point Drift ± 2%F.S./168h
Gas Temperature ≤ 300 °C
Data Update Frequency 1s /per time
Working Conditions -20 - 50 °C; 5 - 95%RH (Non - condensing)
Storage Conditions -40 - 85 °C; 5 - 95%RH (Non - condensing)
Anti - clogging Measure Gas - curtain Protection
Working Voltage DC 12V + 0.5V, Ripple < 100mV
Average Working Current < 500mA
Communication Interface UART_TTL (3.3V)
Product Dimensions (WHD) 272mm * 111mm * 193mm
