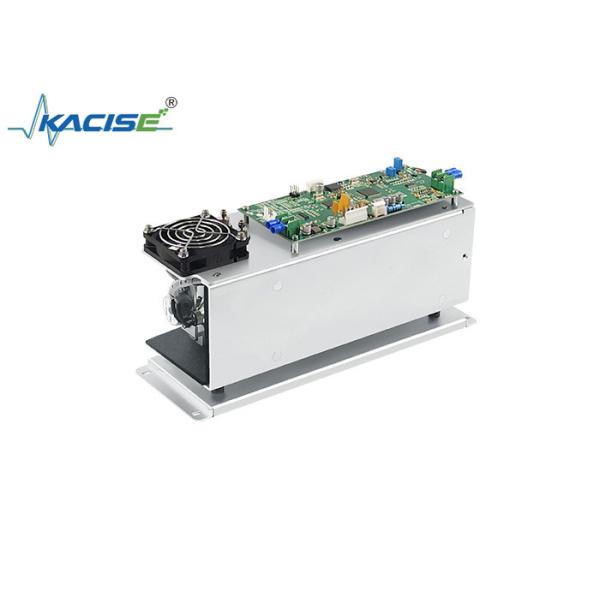

Accurate And Customizable Micro - Flow Infrared Gas Sensor Module KGD - YQ - 536
Accurate And Customizable Micro - Flow Infrared Gas Sensor Module KGD - YQ - 536
Specifications
Brand Name :
KACISE
Model Number :
KGD-YQ-536
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Note :
Components and ranges can be customized
Linear Error :
≤ ± 1%F.S.
Repeatability :
≤ 1%
Zero - point/Range Drift :
≤ ± 2.5%F.S./7d
Communication :
RS232
Circuit board power supply :
±12VDC/24W, 5VDC/10W
Description

Micro - flow Infrared Gas Sensor Module KGD - YQ - 536

Product Introduction

The KGD - YQ - 536 Micro - flow Infrared Gas Sensor Module measures CO, NO, SO₂, CO₂, and CH₄ using micro - flow infrared half - cell sensor technology. The gas cell consists of a measured gas cell and a reference gas cell. The sensor has good selectivity for the measured gas and can perform high - precision and high - stability gas concentration measurements, making it suitable for extremely harsh industrial environments.

Accurate And Customizable Micro - Flow Infrared Gas Sensor Module KGD - YQ - 536

Product Features

  • Equipped with a moisture compensation adjustment device to eliminate the interference of water vapor (H₂O).
  • Modular design of the sensor with a compact structure.
  • The gas cell adopts constant - temperature heating technology to reduce the impact of temperature on measurement accuracy.
  • Suitable for long - term online monitoring with a long service life.
  • Automatic temperature and pressure compensation.

Technical Parameters

Range CO: 0 - 500/1000/2000/5000ppm
SO₂: 0 - 200/5000ppm
CH₄: 0 - 1000/5000ppm
CO₂: 0 - 500/5000ppm
NO: 0 - 200/5000ppm
Note Components and ranges can be customized
Linear Error ≤ ± 1%F.S.
Repeatability ≤ 1%
Zero - point/Range Drift ≤ ± 2.5%F.S./7d
Communication RS232
Power Supply Circuit board power supply: ±12VDC/24W, 5VDC/10W
Constant - temperature heating power supply: 100 - 240VAC, 80W
