Infrared Gas Sensor Module KGD - YQ - 532 for High Accuracy Fast Response Background Gas Detection with Modular Design
Infrared Gas Sensor Module KGD - YQ - 532 for High Accuracy Fast Response Background Gas Detection with Modular Design
Specifications
Brand Name :
KACISE
Model Number :
KGD-YQ-532
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Linear Error :
≤ ± 1%F.S.
Response Time :
≤ 8s@0.7L/min
Repeatability :
≤ 1%
Stability :
≤ ± 2%F.S./24h
Heating Constant Temperature :
50°C
Pre - heating Time :
< 30min
Description
Infrared Gas Sensor Module KGD - YQ - 532 for Detecting Background Gases
Product Introduction

The KGD - YQ - 532 Infrared Gas Sensor Module is a high - performance gas analysis sensor. It uses a high - performance probe and a special process to detect the constant temperature of the gas cell. It has the characteristics of high accuracy, small drift, and fast response. It can simultaneously measure the concentrations of CO/CO₂ gases without mutual interference. It especially suitable for working conditions where the background gas is complex and accurate detection of multiple components is required.,

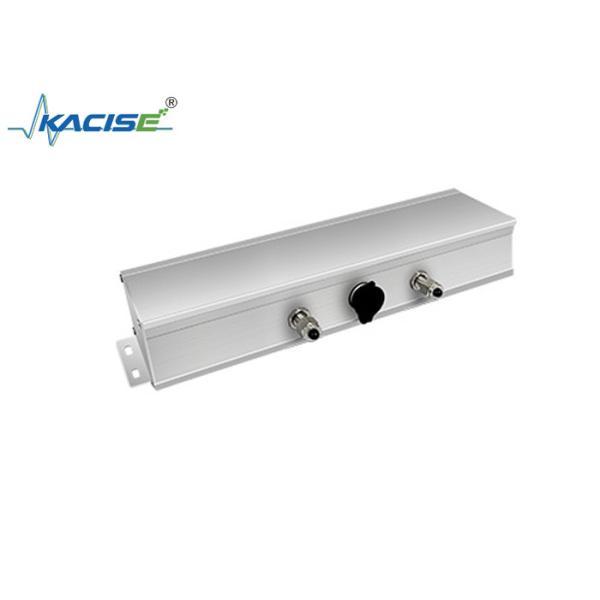

Infrared Gas Sensor Module KGD - YQ - 532 for High Accuracy Fast Response Background Gas Detection with Modular Design
Product Features
  • Excellent performance with a linear error of less than 1%F.S.
  • Constant temperature control reduces the influence of ambient temperature and has strong stability.
  • Optimized absorption peaks and interference compensation algorithms result in small cross - interference.
  • Modular design for easy integration.
Technical Parameters
Measurement Components CO, CO₂
Range and Resolution CO: 1000ppm, 0.1ppm
CO₂: 20Vol.%, 0.01Vol.%
Detection Limit CO: 0.5%F.S.
CO₂: 0.1%F.S.
Linear Error ≤ ± 1%F.S.
Response Time ≤ 8s@0.7L/min
Repeatability ≤ 1%
Stability ≤ ± 2%F.S./24h
Heating Constant Temperature 50°C
Pre - heating Time < 30min
Ambient Temperature (5 - 40) °C
Relative Humidity 0% - 95%rel (Non - condensing)
Atmospheric Pressure (86 - 115) kPa
Sample Gas Flow 0.2mL/min - 1L/min
Communication Method Modbus485/RTU, RS232
Power Supply Voltage 12VDC ± 0.2V/4A
Power Consumption 800mW/2max36W when heating
