Single - Ended Ultrasonic Flow Velocity Meter KGD - LL - 502
Single - Ended Ultrasonic Flow Velocity Meter KGD - LL - 502
Specifications
Brand Name :
KACISE
Model Number :
KGD-MQ-502
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Measured Components :
H₂, N₂, O₂, CO, CO₂, H₂S, CH₄, C₂H₂, C₂H₄, C₃H₆, etc.
Measurement Range :
0 - 100%
Accuracy :
±1%F.S.
Repeatability :
1%F.S.
Input Voltage :
100 - 240VAC, 50 - 60Hz (Standard)
Maximum Power :
Less than 200W
Description

Single - ended Ultrasonic Flow Velocity Meter KGD - LL - 502

Product Introduction

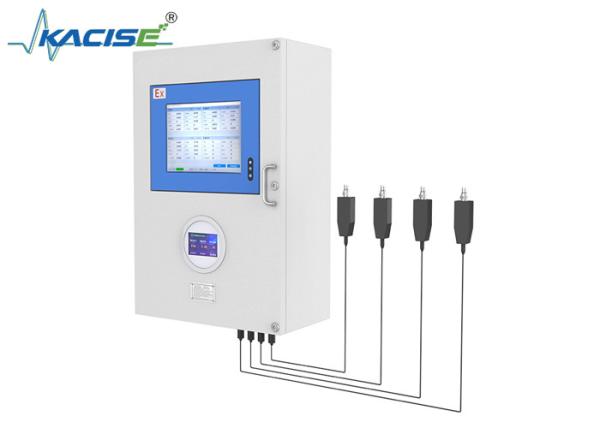

Based on the principle of laser Raman scattering, the KGD - MQ - 502 enhances, collects, processes and identifies the characteristic Raman scattering spectra of the measured gases, enabling qualitative and quantitative analysis of multiple types of gases simultaneously. The system is designed for in - situ installation and measurement, and can conduct continuous on - line non - destructive gas analysis of nearly 20 components at the same time. Equipped with a Raman sampling probe, it adopts a positive - pressure explosion - proof design, which is safe and durable. It has a second - level response, eliminating the need for long waiting.

Single - Ended Ultrasonic Flow Velocity Meter KGD - LL - 502

Product Features

  • Non - destructive gas analysis, including homonuclear diatomic analysis (H₂, N₂, O₂).
  • Capable of continuous on - line monitoring of multiple gases simultaneously. One instrument can solve the full - process monitoring of industrial process gases.
  • Equipped with a Raman probe. There is no need to extract gas for measurement in the instrument, and no consumables (chromatographic columns, valves, air pumps, etc.) are required.
  • The instrument has a positive - pressure explosion - proof design, a long maintenance cycle, and high safety. Toxic and flammable gases will not enter the analysis process.
  • Intelligent software design with a full - touch screen interface. Data is displayed intuitively, and an external PC keyboard can be connected.

Technical Parameters

Items Details
Measured Components H₂, N₂, O₂, CO, CO₂, H₂S, CH₄, C₂H₂, C₂H₄, C₃H₆, etc.
Measurement Range 0 - 100%
Accuracy ±1%F.S.
Repeatability 1%F.S.
Input Voltage 100 - 240VAC, 50 - 60Hz (Standard)
Maximum Power Less than 200W
Communication RS - 232/RS - 485 Serial Port, TCP/IP Network Port, USB Interface, 4 - 20mA
User Interface Explosion - proof Touch Screen
Dimensions (LWH) 540*300*900(mm)
Weight 75kg
Number of Probes 4
Protection Grade IP65
Explosion - proof Class Ex d ⅡC T4 Gb
Operating Temperature (Probe Body/Sample) -20 - 200°C
Operating Temperature (Analyzer) 10 - 35°C
Operating Humidity 95%RH, Non - Condensing
Maximum Operating Pressure 4MPa
Operating Linearity 0 - 95% Relative Humidity, Non - Condensing
Optical Fiber Cable Length Standard 50m, Other lengths can be customized according to requirements
