KGD-MQ-528 Integrated Biogas Analysis System with CH4 Measurement Range 0-100% and H2S Resolution 1ppm
KGD-MQ-528 Integrated Biogas Analysis System with CH4 Measurement Range 0-100% and H2S Resolution 1ppm
Specifications
Brand Name :
KACISE
Model Number :
KGD-MQ-528
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Measured Components :
CH4, CO2, H2S, O2
Measurement Principle :
CH4/CO2: NDIR; H2S/O2: ECD
Measurement Range :
CH4: (0 - 100)%; CO2: (0 - 50)%; H2S: (0 - 9999) ppm; O2: (0 - 25)%
Accuracy :
CH4/CO2: ±1%F.S.; H2S/O2: ±2%F.S.
Resolution :
CH4/CO2/O2: 0.01%; H2S: 1ppm
Repeatability :
CH4/CO2: 0.5%; H2S/O2: 1%
Description

KGD - MQ - 528 Integrated Biogas Analysis System

Product Introduction

The KGD - MQ - 528 Integrated Biogas Analysis System uses non - dispersive infrared gas analysis technology with independent intellectual property rights and long - life electrochemical sensing technology. It can continuously monitor the volume concentrations of gases such as CH4, CO2, H2S, and O2 in biogas components in real - time and online. The system can be optionally equipped with a pretreatment unit to achieve multi - channel sampling and water - removal functions, adapting to various biogas working conditions on - site.

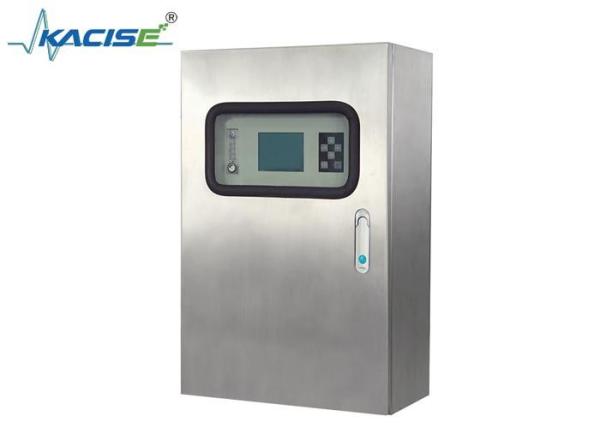

KGD-MQ-528 Integrated Biogas Analysis System with CH4 Measurement Range 0-100% and H2S Resolution 1ppm

Product Features

  • High Measurement Accuracy and Long Service Life
  • It can simultaneously measure the volume concentrations of gases such as CH4, CO2, H2S, and O2 in biogas components online, with no cross - interference among multi - component measured gases. The patented technology of the unique H2S sensor protection device extends the service life of the sensor.
  • Stable Working Performance
  • The sensor adopts a dual - channel design, which is highly stable. It has a self - diagnosis function and can check the sensor status online.
  • Convenient Data Management
  • Data can be transmitted to the superior centralized control system through multiple interfaces, providing real - time basis for remote monitoring and process adjustment.
  • High Degree of Automation
  • It is equipped with a fully automatic, maintenance - free pretreatment device, which can operate stably, accurately, continuously, and automatically online for a long time without the need for manual attendance, greatly reducing the labor cost of enterprises.
  • Simple Operation and No Consumables
  • Compared with gas analysis technologies such as Orsat and chromatography, the measurement process does not require disassembly and installation, nor does it consume chemical reagents. It is simple to operate and has no consumables.

Technical Parameters

Parameter Details
Measured Components CH4, CO2, H2S, O2
Measurement Principle CH4/CO2: NDIR; H2S/O2: ECD
Measurement Range CH4: (0 - 100)%; CO2: (0 - 50)%; H2S: (0 - 9999) ppm; O2: (0 - 25)%
Accuracy CH4/CO2: ±1%F.S.; H2S/O2: ±2%F.S.
Resolution CH4/CO2/O2: 0.01%; H2S: 1ppm
Repeatability CH4/CO2: 0.5%; H2S/O2: 1%
Response Time T90≤60S (NDIR)
Optimal Flow Rate (0.7 - 1.2) L/min
Inlet Gas Pressure (2 - 50) kPa
Gas Requirements Dust - free, water - free, oil - free
Electrical Parameters Electrical parameters
Communication RS - 485/RS - 232, (4 - 20) mA
Power Supply AC220V, 50Hz
Functional Configuration Built - in zero - adjustment air pump for automatic air zero - adjustment
Automatic drainage and sampling time setting
Stainless - steel protective cabinet and anti - corrosion treatment of components for strong corrosion resistance
System overall temperature control, high protection level, suitable for low - temperature and cold regions
With self - diagnosis function, sensor status can be checked online
