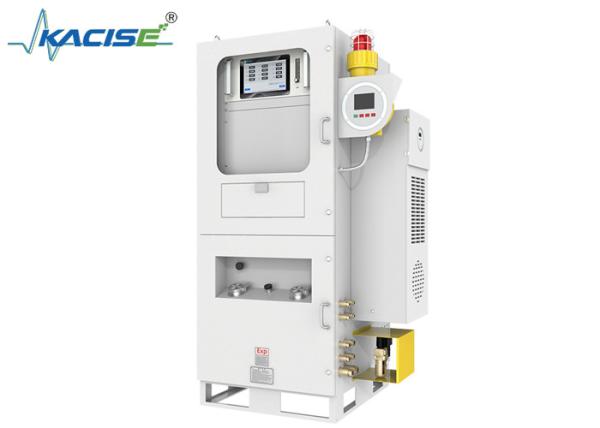

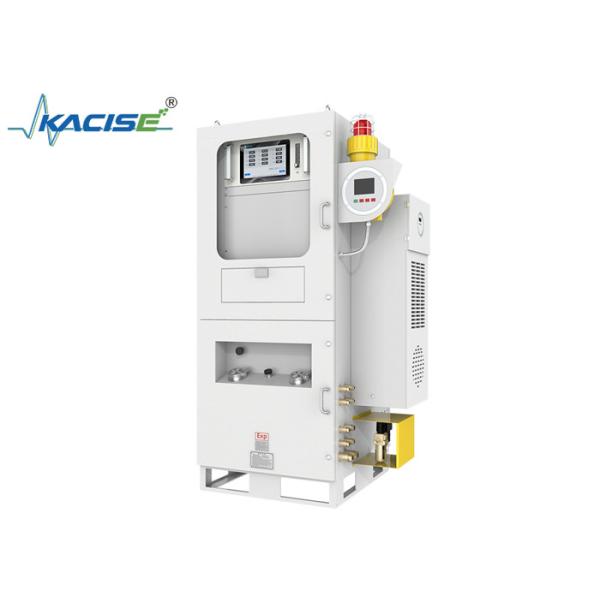

KGD - MQ - 523 Laser Raman Spectroscopy Gas Analyzer

Product Introduction

The KGD - MQ - 523 Laser Raman Spectroscopy Gas Analyzer is based on the principle of laser Raman scattering. It enhances, collects, processes, and identifies the characteristic Raman scattering spectra of the gas to be measured, and conducts quantitative calculations on the content, enabling simultaneous online and real - time detection of multiple gases.

Product Features

• Adopts laser Raman gas characteristic fingerprint technology with less interference.
• Capable of measuring most gases except inert gases, including N2, O2, H2, CH4, C2H6, C3H8, H2S, etc.
• Fast response speed. Measurement results are displayed 30 seconds after the sample gas enters the analyzer.
• Measurement of gas concentration in a wide range. The lowest range is (0 - 10)%, and the highest range is (0 - 100)%.
• Uses gas concentration normalization algorithm and automatic air - extraction calibration to prevent long - term drift.
• Low cost of use and maintenance, with no need for carrier gas or consumables.
• Optional integrated system for real - time cyclic monitoring of multiple monitoring points.
• Intelligent software design with a full - touch screen interface for intuitive data display. An external PC keyboard can be connected.

Product Advantages

• Online, real - time, and full - component analysis. It can replace Gas Chromatography (GC) and Mass Spectrometry (MS).
• Compared with Infrared Analysis Technology (NDIR) - Infrared gas analyzers have a small range and cannot detect homonuclear diatomic molecules such as N2, O2, and H2. The KGD - MQ - 523 has the ability to detect multi - component gas components, especially to accurately measure diatomic molecules in natural gas, with a larger range and higher precision.
• Compared with Gas Chromatography Technology (GC) - Gas chromatographs require carrier gas and chromatographic columns, and the response time usually ranges from several minutes to dozens of minutes, and professional technicians are needed for operation. The KGD - MQ - 523 has an extremely short response time, requires no carrier gas or consumables, is easy to operate, and has a low cost of use.
• Compared with Mass Spectrometry Analysis Technology (MS) - Mass spectrometers are expensive, have high maintenance costs, and complex operation, and are rarely used for online analysis in industrial fields. The KGD - MQ - 523 is sturdy and durable, easy to operate, and has low maintenance costs, making it more suitable for harsh industrial sites.

Technical Parameters
