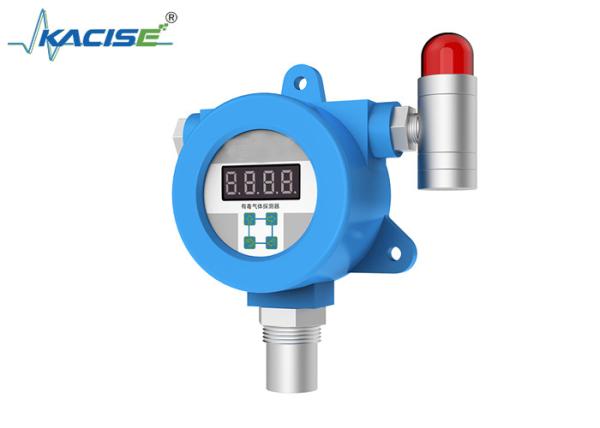

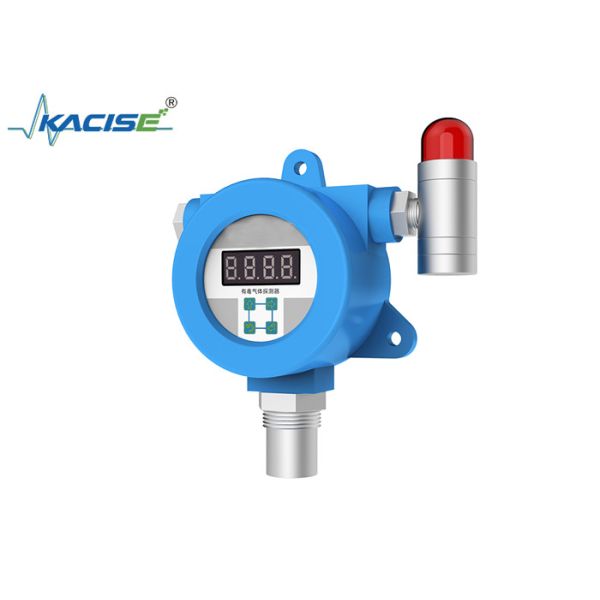

KGD - MQ - 534 Toxic And Hazardous Gas Detection Instrument
KGD - MQ - 534 Toxic And Hazardous Gas Detection Instrument
Specifications
Brand Name :
KACISE
Model Number :
KGD-MQ-534
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Measured Components :
CO, H2S
Measurement Principle :
ECD Electrochemistry
Measurement Range :
CO: 0 - 1000ppm; H2S: 0 - 100ppm (The range can be customized according to actual requirements)
Accuracy :
±2μmol/mol or ±10%
Resolution :
1ppm
Response Time :
T90<30s
Description

KGD - MQ - 534 Toxic and Hazardous Gas Detection (Alarm) Instrument

Product Introduction

The KGD - MQ - 534 Toxic and Hazardous Gas Detection (Alarm) Instrument adopts ECD electrochemical technology and is mainly used for detecting and alarming CO/H2S gas leaks in fields such as natural gas, coal - bed methane, landfill, sewage treatment, and anaerobic fermentation.

KGD - MQ - 534 Toxic And Hazardous Gas Detection Instrument

Product Features

  • Adopts long - life electrochemical technology to accurately measure CO/H2S.
  • Can be used in an oxygen - free environment.
  • Has temperature compensation and automatic zero - point correction functions.
  • Long service life, with no sensor poisoning phenomenon.
  • Explosion - proof grade: Ex d ⅡC T6 Gb, meeting the safety alarm requirements for gas leaks in multiple fields.

Technical Parameters

Parameter Details
Measured Components CO, H2S
Measurement Principle ECD Electrochemistry
Measurement Range CO: 0 - 1000ppm; H2S: 0 - 100ppm (The range can be customized according to actual requirements)
Accuracy ±2μmol/mol or ±10%
Resolution 1ppm
Response Time T90<30s
Pre - sampling Time 30s
Sampling Method Diffusion - type
Explosion - proof Grade Ex d IIC T6 Gb
Signal Output RS - 485 digital output, 2 - way relay normally open contact, 1 - way 4 - 20mA current output
Application Environment
Operating Temperature (-20 - 60) °C
Ambient Humidity ≤95%RH
Storage Temperature (-40 - 85) °C
Electrical Parameters Electrical parameters
Working Power Supply DC12 - 24V
Display LCD display
