KGD - WQ - 502 Engine Exhaust Full - Flow Dilution Constant - Volume Sampling System
KGD - WQ - 502 Engine Exhaust Full - Flow Dilution Constant - Volume Sampling System
Specifications
Brand Name :
KACISE
Model Number :
KGD-WQ-502
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
System Accuracy :
≤ ±2% (Checked by propane injection)
Diluted Exhaust Flow Rate :
1 - 12 m³/min; 3 - 24 m³/min; 9 - 60 m³/min; 30 - 150 m³/min
Diluted Exhaust Temperature Control :
40 ± 5 °C
Gas Bag Sampling Flow Rate :
3 L/min, 6 L/min or 9 L/min
Number of Gas Bags :
3 diluted air gas bags, 3 diluted exhaust gas bags
Gas Bag Cabinet Temperature Control :
35 ± 5 °C
Description

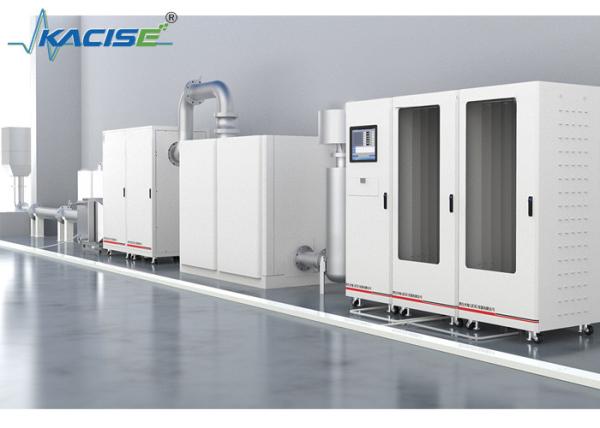

KGD - WQ - 502 Engine Exhaust Full - flow Dilution Constant - volume Sampling System

Product Introduction

The KGD - WQ - 502 Engine Exhaust Full - flow Dilution Constant - volume Sampling System is specifically designed for measuring the diluted emissions of vehicles and engines. It features a fully - functional and technologically - advanced hardware configuration and software platform. When used in conjunction with high - precision gas and particle online analyzers, it can meet the requirements of current major mobile source emission standards and Euro 7 emission standards for laboratory Type I emission tests.

KGD - WQ - 502 Engine Exhaust Full - Flow Dilution Constant - Volume Sampling System

Product Features

  • Offers a wide range of diluted exhaust flow rate options to meet the testing needs of engines and vehicles with various fuels and displacements.
  • Through the combination of a high - performance heat exchanger and a Venturi tube, it can accurately control the diluted exhaust flow rate and ensure the accuracy and stability of the system.
  • Thanks to the constant - temperature control functions of the heat exchanger and the gas bag cabinet, it can effectively prevent the condensation of diluted exhaust.
  • Equipped with a high - performance diluted air filtration device to meet the emission test requirements for ultra - low emission levels.

Technical Parameters

Parameter Details
System Accuracy ≤ ±2% (Checked by propane injection)
Diluted Exhaust Flow Rate 1 - 12 m³/min; 3 - 24 m³/min; 9 - 60 m³/min; 30 - 150 m³/min
Diluted Exhaust Temperature Control 40 ± 5 °C
Gas Bag Sampling Flow Rate 3 L/min, 6 L/min or 9 L/min
Number of Gas Bags 3 diluted air gas bags, 3 diluted exhaust gas bags
Gas Bag Cabinet Temperature Control 35 ± 5 °C
Particle Sampling Flow Rate 35 - 65 L/min
Number of Particle Sampling Channels 3 diluted exhaust sampling channels, 1 diluted air sampling channel
Particle Sampling Box Temperature Control 47 ± 5 °C
Diluted Air Filtration Device Activated carbon filter, pre - filter, and H13 - grade high - efficiency filter
Application Environment Ambient temperature 5 - 35 °C; Ambient humidity ≤ 80%RH; Atmospheric pressure 80 - 102 kPa
