80W Vehicle Emission Gas Analyzer for CO2 Measuring Range 0.0-18.0 ×10-2 and Vehicle Exhaust Gas Monitoring
80W Vehicle Emission Gas Analyzer for CO2 Measuring Range 0.0-18.0 ×10-2 and Vehicle Exhaust Gas Monitoring
Specifications
Model Number :
KGD-WQ-515
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Brand Name :
KACISE
Communication :
RS - 485/RS - 232, can be connected to Gasboard series smoke analysis equipment
Power Supply :
100 - 240VAC, 80W
Display :
LCD display
HC Measuring Range :
(0~5000)×10-6
CO Measuring Range :
(0.00~10.00)×10-2
CO2 Measuring Range :
(0.0~18.0)×10-2
Description

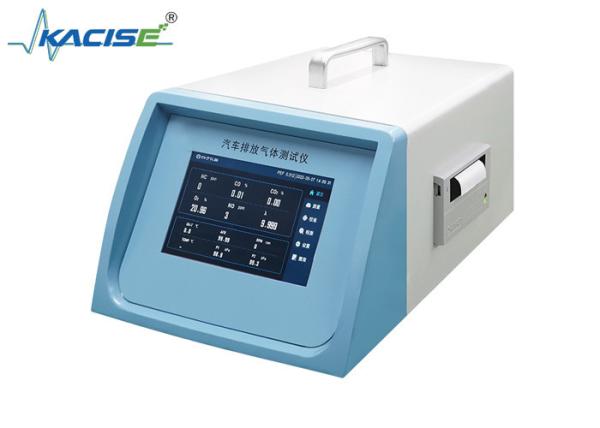

The KGD - WQ - 515 Vehicle Emission Gas Analyzer is used to monitor the exhaust gas emitted by vehicles.

Product Introduction

KGD-WQ-515 Vehicle Emission Gas Analyzer is used to monitor vehicle exhaust emissions. It employs non-dispersive infrared (NDIR) gas analysis technology and ECD long-life electrochemical sensing technology with independent intellectual property rights to measure the volume concentrations of CO, HC, CO₂, O₂, and NO in vehicle exhaust gases, and automatically calculates and displays the air-fuel ratio.

80W Vehicle Emission Gas Analyzer for CO2 Measuring Range 0.0-18.0 ×10-2 and Vehicle Exhaust Gas Monitoring

Product Features

  • Portable design with a compact size
  • Easy to operate, offering accurate and reliable measurements
  • Multi-stage filtration system design for enhanced system durability
  • Equipped with interfaces for oil temperature and rotational speed

Technical Parameters

Gas Type Measuring Range Relative Error Absolute Error
HC (0 - 5000)×10⁻⁶, (5001 - 9999)×10⁻⁶ ± 5%, ± 10% ± 10×10⁻⁶
CO (0.00 - 10.00)×10⁻², (10.01 - 14.00)×10⁻² ± 5%, ± 10% ± 0.03×10⁻²
CO₂ (0 - 18.0)×10⁻² ± 5% ± 0.5×10⁻²
NO (0 - 4000)×10⁻⁶, (4001 - 5000)×10⁻⁶ ± 4%, ± 8% ± 25×10⁻⁶
O₂ (0 - 25.0)×10⁻² ± 5% ± 0.1×10⁻²
Note The absolute error and relative error listed in the table, meeting one of the requirements is sufficient.
Communication RS - 485/RS - 232, can be connected to Gasboard series smoke analysis equipment
Power Supply 100 - 240VAC, 80W
Display LCD display
