KGD WQ 511 Motor Vehicle Nitrogen Oxides Rapid Detector Fast and Accurate Detection with Resolution 1ppm
KGD WQ 511 Motor Vehicle Nitrogen Oxides Rapid Detector Fast and Accurate Detection with Resolution 1ppm
Specifications
Brand Name :
KACISE
Model Number :
KGD-WQ-511
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Measurement Principle :
Ultraviolet Spectroscopy
Measuring Range :
0 - 1500ppm
Resolution :
1ppm
Relative Error :
± 4%
Absolute Error :
± 17ppm
Response Time :
≤ 5s
Description

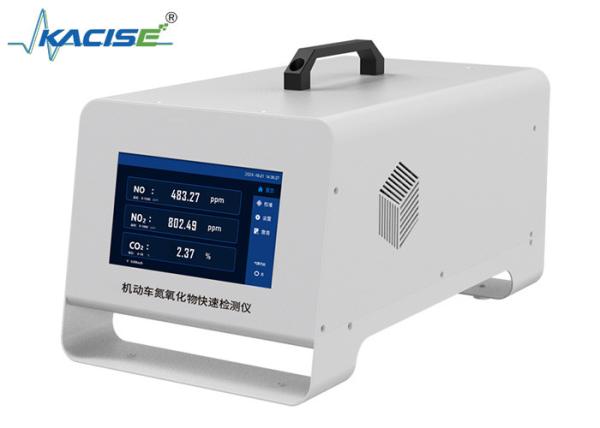

KGD - WQ - 511 Motor Vehicle Nitrogen Oxides Rapid Detector

Product Introduction

The KGD - WQ - 511 Motor Vehicle Nitrogen Oxides Rapid Detector uses ultraviolet spectroscopy to continuously measure NO and NO₂ in real - time. It is equipped with a Beidou navigation system and an APP software platform, and is specifically designed for rapidly detecting the concentration of nitrogen oxides in the exhaust emissions of in - use vehicles under simulated conditions on a chassis dynamometer or during actual road driving conditions.

KGD WQ 511 Motor Vehicle Nitrogen Oxides Rapid Detector Fast and Accurate Detection with Resolution 1ppm

Product Features

  • Directly measures NO and NO₂ without the need for a NOₓ converter.
  • Multi - stage filtration design to prevent contamination of the measurement gas chamber.
  • Compact structure, robust and durable, with low maintenance costs.
  • APP software platform for convenient remote online monitoring.

Technical Parameters

Equipment Name Portable Nitrogen Oxide Analyzer (NO) Portable Nitrogen Oxide Analyzer (NO₂) Portable Nitrogen Oxide Analyzer (CO₂)
Measured Gas NO NO₂ CO₂
Measurement Principle Ultraviolet Spectroscopy Ultraviolet Spectroscopy Electrochemistry
Measuring Range 0 - 1500ppm 0 - 1000ppm 0 - 18%
Resolution 1ppm 1ppm 0.01%
Relative Error ± 4% ± 4% ± 3%
Absolute Error ± 17ppm ± 17ppm ± 0.03%
Response Time ≤ 5s ≤ 5s ≤ 5s
Pre - heating Time 800s 800s 800s
Communication Interface RS232, Wi - Fi RS232, Wi - Fi RS232, Wi - Fi
Operating Temperature 5 - 40°C 5 - 40°C 5 - 40°C
Operating Humidity 5 - 85% RH 5 - 85% RH 5 - 85% RH
Operating Pressure 86 - 106 kPa 86 - 106 kPa 86 - 106 kPa
Working Power Supply DC 12V DC 12V DC 12V
