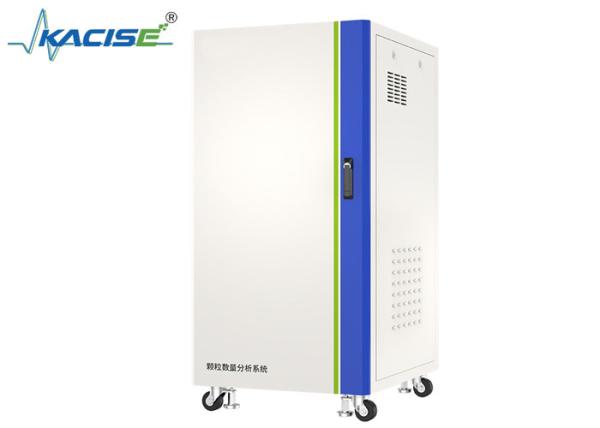

KGD-WQ-509 Engine Exhaust Particle Number Analysis System
KGD-WQ-509 Engine Exhaust Particle Number Analysis System
Specifications
Brand Name :
KACISE
Model Number :
KGD-WQ-509
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Minimum Particle Size Limit (Counting Efficiency) :
41 nm (>90%)
Measurement Principle :
Condensation Particle Counting
CPC Measurement Range :
0 - 100000 #/cm³
CPC Measurement Precision :
≤ ±10%
Primary Dilution Ratio :
10
Description

KGD-WQ-509Engine Exhaust Particle Number Analysis System

Product Introduction

The Engine Exhaust Particle Number Analysis System can continuously measure the number concentration of solid particles in engine exhaust gas online. It can be combined with a full - flow dilution system or a partial - flow dilution system and is used for engine/vehicle certification tests in accordance with the latest regulations. It can also directly measure exhaust gas from the exhaust pipe for research and development tests of engines or after - treatment devices.

KGD-WQ-509 Engine Exhaust Particle Number Analysis System

Product Features

  • High - precision primary and secondary dilution
  • High - performance VPR (Volatile Particle Remover) device
  • High - precision CPC (Condensation Particle Counter)
  • Minimum particle size limit can be extended to 10nm

Technical Parameters

Parameter Heavy - duty Vehicles: Euro VI, China VI; Heavy - duty Vehicles: Euro 7
Compliance Standard Non - Road Mobile Machinery: Stage V
Minimum Particle Size Limit (Counting Efficiency) 23 nm (50% ± 12%) 10 nm (65% ± 15%)
Minimum Particle Size Limit (Counting Efficiency) 41 nm (>90%) 15 nm (>90%)
Measurement Principle Condensation Particle Counting Condensation Particle Counting
CPC Measurement Range 0 - 100000 #/cm³ 0 - 100000 #/cm³
CPC Measurement Precision ≤ ±10% ≤ ±10%
Primary Dilution Ratio 10 10
Secondary Dilution Ratio 10-30 10-30
Precision of Total Dilution Ratio ≤ ±10% of the set value ≤ ±10% of the set value
VPR Removal Efficiency >99.0% (C40) >99.0% (C40)
Response Time T90 < 5s T90 < 5s
Operating Environment Ambient temperature: 5 - 35°C; Relative humidity: ≤ 80%RH Ambient temperature: 5 - 35°C; Relative humidity: ≤ 80%RH
