Engine Exhaust Particle Number Analysis System with High-Precision CPC for 10nm Particle Size Limit and Continuous Online Measurement
Engine Exhaust Particle Number Analysis System with High-Precision CPC for 10nm Particle Size Limit and Continuous Online Measurement
Specifications
Brand Name :
KACISE
Model Number :
KGD-WQ-509
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Minimum Particle Size Limit (Counting Efficiency) :
41 nm (>90%)
Measurement Principle :
Condensation Particle Counting
CPC Measurement Range :
0 - 100000 #/cm³
CPC Measurement Precision :
≤ ±10%
Primary Dilution Ratio :
10
Description
KGD-WQ-509 Engine Exhaust Particle Number Analysis System
Product Overview

The Engine Exhaust Particle Number Analysis System continuously measures the number concentration of solid particles in engine exhaust gas online. This system can be integrated with full-flow or partial-flow dilution systems and is designed for engine/vehicle certification testing in compliance with the latest regulations. It also supports direct exhaust gas measurement from exhaust pipes for research and development of engines or after-treatment devices.

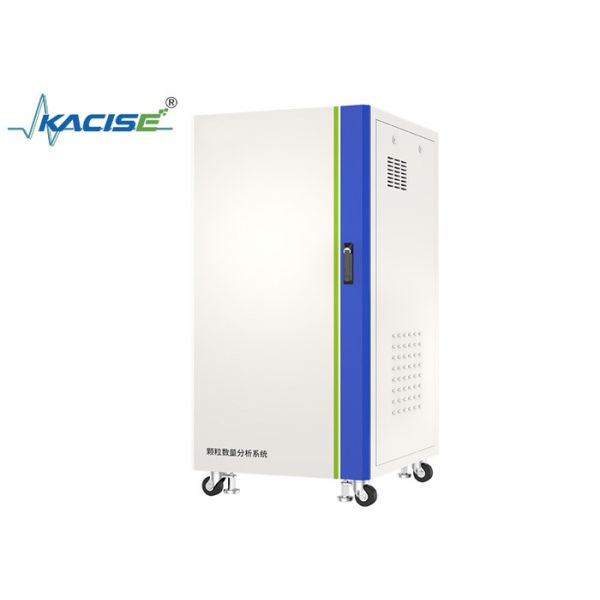

Engine Exhaust Particle Number Analysis System with High-Precision CPC for 10nm Particle Size Limit and Continuous Online Measurement
Key Features
  • High-precision primary and secondary dilution
  • High-performance VPR (Volatile Particle Remover) device
  • High-precision CPC (Condensation Particle Counter)
  • Minimum particle size limit extendable to 10nm
Technical Specifications
Parameter Heavy-duty Vehicles: Euro VI, China VI; Non-Road Mobile Machinery: Stage V Heavy-duty Vehicles: Euro 7
Minimum Particle Size Limit (Counting Efficiency) 23 nm (50% ± 12%) 10 nm (65% ± 15%)
Minimum Particle Size Limit (Counting Efficiency) 41 nm (>90%) 15 nm (>90%)
Measurement Principle Condensation Particle Counting Condensation Particle Counting
CPC Measurement Range 0 - 100000 #/cm³ 0 - 100000 #/cm³
CPC Measurement Precision ≤ ±10% ≤ ±10%
Primary Dilution Ratio 10 10
Secondary Dilution Ratio 10-30 10-30
Precision of Total Dilution Ratio ≤ ±10% of the set value ≤ ±10% of the set value
VPR Removal Efficiency >99.0% (C40) >99.0% (C40)
Response Time T90 < 5s T90 < 5s
Operating Environment Ambient temperature: 5 - 35°C; Relative humidity: ≤ 80%RH Ambient temperature: 5 - 35°C; Relative humidity: ≤ 80%RH
