KGD - WQ - 510 Motor Vehicle Brake Emission Testing System
KGD - WQ - 510 Motor Vehicle Brake Emission Testing System
Specifications
Brand Name :
KACISE
Model Number :
KGD-WQ-510
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Flow Control Range :
100 - 2000 m³/h
Flow Control Stability :
≤ ±5% of the set value
Flow Measurement Accuracy :
≤ ±1.5% of the reading
Cooling Air Temperature :
23°C ± 2°C
Cooling Air Humidity :
50% ± 5%RH
Cooling Air Filtration Device :
Activated carbon filter and H13 - grade particle filter
Description

KGD - WQ - 510 Motor Vehicle Brake Emission Testing System

Product Introduction

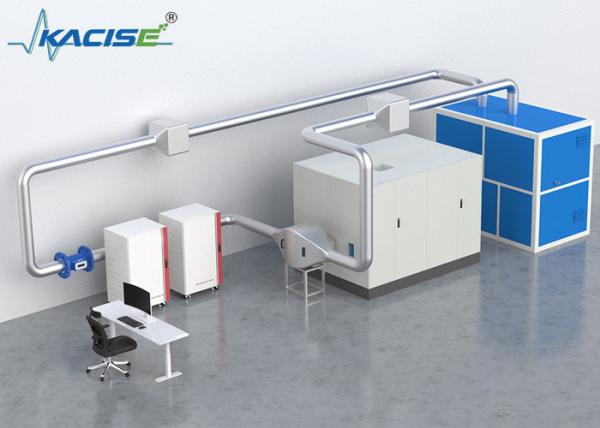

The KGD - WQ - 510 Motor Vehicle Brake Emission Testing System is a comprehensive solution specifically designed for the standardized testing of motor vehicle brake particle emissions. It is composed of an air duct control system, a particle sampling system, a particle number analysis system, an inertial brake dynamometer, and a main control system. The main test items include PM2.5, PM10, SPN, and TPN, which can meet the certification test requirements of the Euro 7 emission standard and related research and development test needs..

KGD - WQ - 510 Motor Vehicle Brake Emission Testing System

Product Features

  • The system is designed and optimized using advanced computational fluid dynamics simulation technology to reduce particle loss and improve the mixing degree at sampling points.
  • The inner wall of the dilution air duct is electropolished to reduce particle loss and improve the measurement repeatability.
  • The testing system and core components have been verified through years of practical applications, featuring excellent reliability in the testing installation and measurement process.
  • Advanced CPC (Condensation Particle Counter) technology is used for particle counting, ensuring first - class measurement accuracy and stability.

Technical Parameters

Parameter Details
Flow Control Range 100 - 2000 m³/h
Flow Control Stability ≤ ±5% of the set value
Flow Measurement Accuracy ≤ ±1.5% of the reading
Cooling Air Temperature 23°C ± 2°C
Cooling Air Humidity 50% ± 5%RH
Cooling Air Filtration Device Activated carbon filter and H13 - grade particle filter
Particle Sampling System
Maximum Particle Size Limit 2.5μm and 10μm
Filter Paper Sampling Temperature ≥ 15°C; No condensation
Filter Paper Diameter 47mm
Sampling Flow Rate 16.7 L/min
Sampling Flow Control Accuracy ≤ ±2% of the set value
Particle Number Analysis System
Measurement Principle Condensation Particle Counting (CPC)
Measurement Items TPM10; SPN10
Maximum Particle Size Limit 2.5μm
Minimum Particle Size Limit 10 nm (counting efficiency: 65% ± 15%)
15 nm (counting efficiency: >90%)
CPC Measurement Range 0 - 100000 #/cm³
CPC Measurement Precision ≤ ±10%
Primary Dilution Ratio 10
Secondary Dilution Ratio 10-30
VPR Removal Efficiency >99.9%
Response Time T90 < 5s
