KGD-WQ-510 Motor Vehicle Brake Emission Testing System with Euro 7 Compliance Advanced CPC Technology and Electropolished Inner Wall
KGD-WQ-510 Motor Vehicle Brake Emission Testing System with Euro 7 Compliance Advanced CPC Technology and Electropolished Inner Wall
Specifications
Brand Name :
KACISE
Model Number :
KGD-WQ-510
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Flow Control Range :
100 - 2000 m³/h
Flow Control Stability :
≤ ±5% of the set value
Flow Measurement Accuracy :
≤ ±1.5% of the reading
Cooling Air Temperature :
23°C ± 2°C
Cooling Air Humidity :
50% ± 5%RH
Cooling Air Filtration Device :
Activated carbon filter and H13 - grade particle filter
Description
KGD - WQ - 510 Motor Vehicle Brake Emission Testing System
Product Overview

The KGD - WQ - 510 Motor Vehicle Brake Emission Testing System is a comprehensive solution specifically designed for standardized testing of motor vehicle brake particle emissions. This integrated system meets certification test requirements for the Euro 7 emission standard and supports related research and development testing needs.

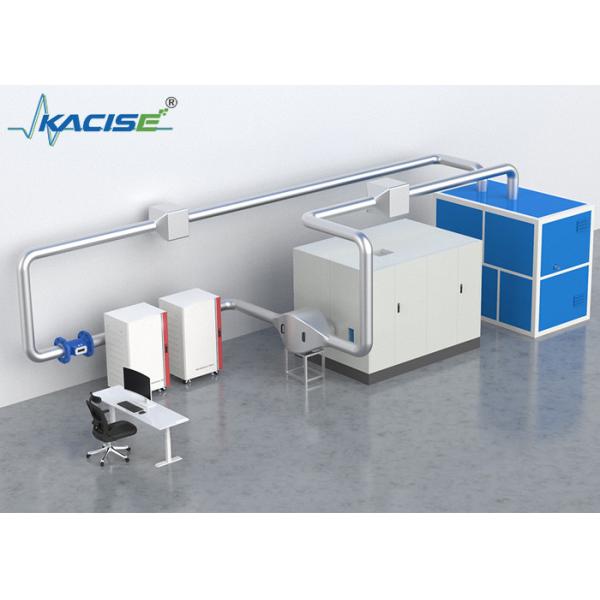

KGD-WQ-510 Motor Vehicle Brake Emission Testing System with Euro 7 Compliance Advanced CPC Technology and Electropolished Inner Wall
System Features
  • Designed and optimized using advanced computational fluid dynamics simulation technology to reduce particle loss and improve mixing degree at sampling points
  • Electropolished inner wall of dilution air duct reduces particle loss and improves measurement repeatability
  • Verified through years of practical applications with excellent reliability in testing installation and measurement processes
  • Advanced CPC (Condensation Particle Counter) technology ensures first-class measurement accuracy and stability
Technical Specifications
Parameter Details
Flow Control Range 100 - 2000 m³/h
Flow Control Stability ≤ ±5% of the set value
Flow Measurement Accuracy ≤ ±1.5% of the reading
Cooling Air Temperature 23°C ± 2°C
Cooling Air Humidity 50% ± 5%RH
Cooling Air Filtration Device Activated carbon filter and H13-grade particle filter
Particle Sampling System
Maximum Particle Size Limit 2.5μm and 10μm
Filter Paper Sampling Temperature ≥ 15°C; No condensation
Filter Paper Diameter 47mm
Sampling Flow Rate 16.7 L/min
Sampling Flow Control Accuracy ≤ ±2% of the set value
Particle Number Analysis System
Measurement Principle Condensation Particle Counting (CPC)
Measurement Items TPM10; SPN10
Maximum Particle Size Limit 2.5μm
Minimum Particle Size Limit 10 nm (counting efficiency: 65% ± 15%)
15 nm (counting efficiency: >90%)
CPC Measurement Range 0 - 100000 #/cm³
CPC Measurement Precision ≤ ±10%
Primary Dilution Ratio 10
Secondary Dilution Ratio 10-30
VPR Removal Efficiency >99.9%
Response Time T90 < 5s
