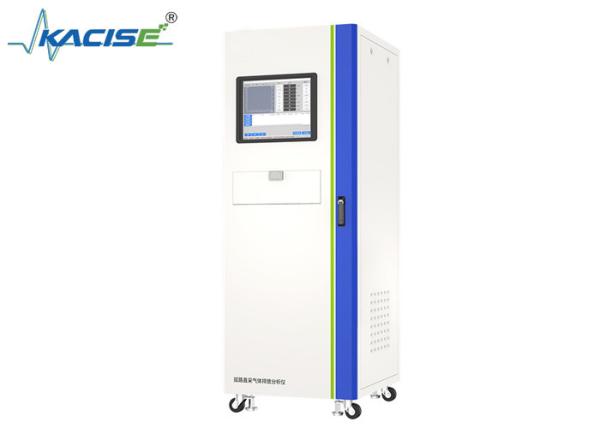

KGD-WQ-507 Dual - Channel Direct - Sampling Gas Emission Analyzer
KGD-WQ-507 Dual - Channel Direct - Sampling Gas Emission Analyzer
Specifications
CH₄ Detection Range :
0 - 10 - 30000 ppmC
O₂ Detection Range :
0 - 25%
NOₓ Detection Range :
0 - 10 - 10000 ppmC
THC Detection Range :
0 - 10 - 30000 ppmC
CO₂ Detection Range :
0 - 0.1 - 20%
CO Detection Range :
0 - 0.005 - 10%
Brand Name :
KACISE
Model Number :
KGD-WQ-507
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Description
KGD-WQ-507 Dual-Channel Direct-Sampling Gas Emission Analyzer
Key Specifications
Attribute Value
THC Detection Range 0 - 10 - 30000 ppmC
CH₄ Detection Range 0 - 10 - 30000 ppmC
NOₓ Detection Range 0 - 10 - 10000 ppmC
CO Detection Range 0 - 0.005 - 10%
CO₂ Detection Range 0 - 0.1 - 20%
O₂ Detection Range 0 - 25%
Product Overview
The KGD-WQ-507 Dual-Channel Direct-Sampling Gas Emission Analyzer integrates multiple advanced detection technologies including Hydrogen Flame Ionization Detection (HFID), Non-Dispersive Ultraviolet (NDUV), Chemiluminescence Detection (CLD), Non-Dispersive Infrared (NDIR), and Magnetic-Parametric Detection (MPD). This comprehensive solution simultaneously measures volume concentrations of THC, CH₄, NOₓ, CO, CO₂, and O₂ in engine exhaust emissions, as well as CO₂ concentration in EGR pipeline gas.
KGD-WQ-507 Dual - Channel Direct - Sampling Gas Emission Analyzer
Designed for engine manufacturers, testing institutions, and research facilities, this analyzer provides complete system testing solutions to meet increasingly stringent emission regulations.
Key Features
  • Simultaneous measurement of THC, NOₓ, CO, CO₂, O₂ with optional CH₄, NMHC, NH₃, N₂O measurement capabilities
  • NDUV technology for direct NO and NO₂ measurement without converter furnace, eliminating maintenance requirements
  • Optional CLD technology for NOₓ measurement
  • Real-time multi-point sampling and analysis of exhaust gas components
  • Comprehensive EGR gas path CO₂ concentration analysis
  • Integrated, automated design for ease of operation
  • High accuracy measurements with fast response times, comparable to imported equipment standards
Technical Parameters
Gas Type Detection Range Resolution Measurement Error Rise Time
THC 0 - 10 - 30000 ppmC 0.1ppm ≤ 2% of reading or ≤ 0.3% F.S. ≤ 1.5s
CH₄ 0 - 10 - 30000 ppmC 0.1ppm ≤ 2% of reading or ≤ 0.3% F.S. ≤ 1.5s
NOₓ 0 - 10 - 10000 ppmC 0.1ppm ≤ 2% of reading or ≤ 0.3% F.S. ≤ 1.5s
CO 0 - 0.005 - 10% 1ppm ≤ 2% of reading or ≤ 0.3% F.S. ≤ 1.5s
CO₂ 0 - 0.1 - 20% 0.01% ≤ 2% of reading or ≤ 0.3% F.S. ≤ 1.5s
O₂ 0 - 25% 0.01% ≤ 2% of reading or ≤ 0.3% F.S. ≤ 1.5s
EGR CO₂ 0 - 0.1 - 20% 0.01% ≤ 2% of reading or ≤ 0.3% F.S. ≤ 1.5s
