KGD-WQ-505 Fuel Engine Exhaust Gas Analysis System For Accurate Analysis
KGD-WQ-505 Fuel Engine Exhaust Gas Analysis System For Accurate Analysis
Specifications
Brand Name :
KACISE
Model Number :
KGD-WQ-505
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Measured Components :
NH₃, NO, NO₂, N₂O
Sampling Gas Pipeline Temperature :
113°C ± 6°C
Sampling Gas Flow Rate :
8.0L/min ± 1.0L/min
Ambient temperature :
5 - 40°C
Ambient humidity :
Relative humidity ≤ 80%
NH₃: :
(Low concentration) 0 - 100ppm (High concentration) 0 - 5000ppm
Description

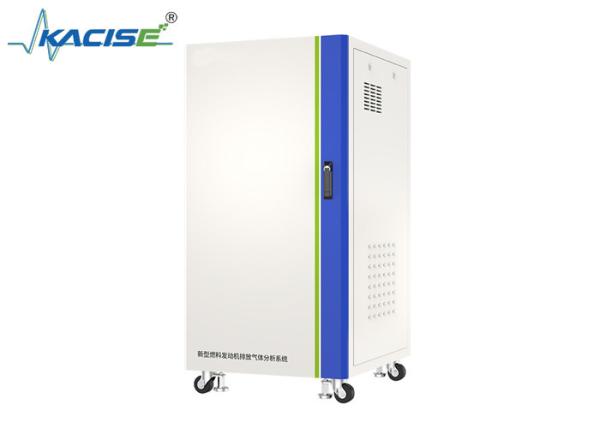

KGD-WQ-505 New Fuel Engine Exhaust Gas Analysis System

Product Introduction

The KGD-WQ-505 New Fuel Engine Exhaust Gas Analysis System is a specialized detection device for engine exhaust gases. The system combines Tunable Diode Laser Absorption Spectroscopy (TDLAS), Non - Dispersive Ultraviolet Absorption Spectroscopy (NDUV), and Gas Filter Correlation Infrared Absorption Spectroscopy (GFC) to simultaneously measure the concentrations of NH₃, NO, NO₂, and N₂O in engine exhaust gases with low interference and high precision. It is used for the development and research of engines and after - treatment systems, and provides reliable test data for reducing NH₃ emissions. Aiming at the characteristics of internal combustion research and development of new fuels (such as NH₃ blended fuels, biofuels, compressed natural gas, e - fuels, etc.) and in line with the requirements of the next - generation emission regulations Euro 7 and China 7, the system helps users quickly obtain accurate reference data.

KGD-WQ-505 Fuel Engine Exhaust Gas Analysis System For Accurate Analysis

Product Features

  • Analyzes four nitrogen compounds: NH₃, NO, NO₂, N₂O
  • Meets various domestic and international standard requirements: Euro 7, China 7, CFR 1065 (N₂O)
  • Wide measurement concentration range: Enables high - precision measurement over a large concentration range for nitrogen oxides
  • Strong anti - interference ability: Laser spectroscopy technology is not interfered by background gases

Technical Parameters

Parameter Details
Measured Components NH₃, NO, NO₂, N₂O
Measurement Range NH₃: (Low concentration) 0 - 100ppm (High concentration) 0 - 5000ppm
NO: (Low concentration) 0 - 200ppm (High concentration) 0 - 5000ppm
NO₂: (Low concentration) 0 - 200ppm (High concentration) 0 - 3000ppm
N₂O: (Low concentration) 0 - 200ppm (High concentration) 0 - 5000ppm
Sampling Gas Pipeline Temperature 113°C ± 6°C
Sampling Gas Flow Rate 8.0L/min ± 1.0L/min
Operating Environment Ambient temperature: 5 - 40°C
Ambient humidity: Relative humidity ≤ 80%
