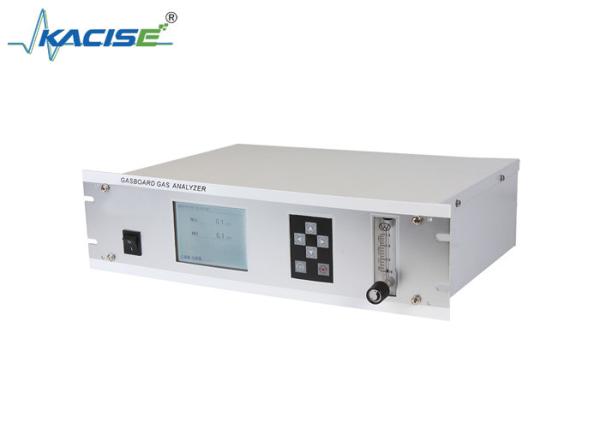

KGD - WQ - 520 Ultraviolet NOₓ Emission Analyzer For Low - Emission Detection Of Vehicle Exhaust.
KGD - WQ - 520 Ultraviolet NOₓ Emission Analyzer For Low - Emission Detection Of Vehicle Exhaust.
Specifications
Brand Name :
KACISE
Model Number :
KGD-WQ-520
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Measuring Range :
NO: (0 - 4000) ppm; NO₂: (0 - 400) ppm
Precision :
± 2%F.S.
Response Time :
T90 ≤ 30s
Ambient Temperature :
(5 - 40) °C
Ambient Pressure :
(86 - 106) kPa
Relative Humidity :
≤ 85%
Description

KGD - WQ - 520 Ultraviolet NOₓ Emission Analyzer is used for low - emission detection of vehicle exhaust.

Product Introduction

The KGD - WQ - 520 Ultraviolet NOₓ Emission Analyzer is a new - generation nitrogen oxide analyzer independently developed based on ultraviolet absorption spectroscopy gas analysis technology. With a unique algorithm and a high - precision straight - through short gas chamber, it has strong anti - interference ability and high measurement accuracy, meeting the measurement accuracy requirements of grade 00 in GB 3847 and GB 18285 standards.

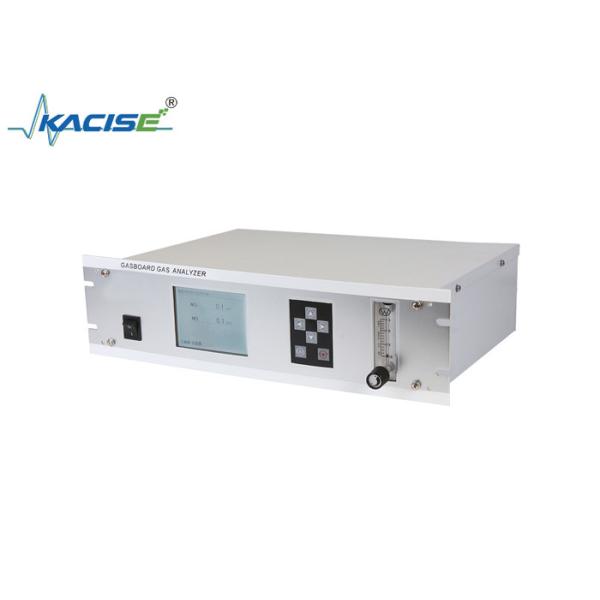

KGD - WQ - 520 Ultraviolet NOₓ Emission Analyzer For Low - Emission Detection Of Vehicle Exhaust.

Product Features

  • Adopts ultraviolet absorption spectroscopy gas analysis technology to reduce gas cross - interference.
  • The sampling flow has basically no impact on the measurement of NO and NO₂, and the instrument has strong anti - interference ability.
  • Has a low detection limit to meet the needs of low - emission detection of vehicle exhaust.
  • An internal automatic zero - adjustment air pump is installed to achieve automatic air zero - adjustment.
  • Has a self - diagnosis function to check the working status of the sensor online.
  • Equipped with a communication interface for easy data transmission and integration with other exhaust gas analysis equipment.

Technical Parameters

Measured Components NO, NO₂
Measuring Range NO: (0 - 4000) ppm; NO₂: (0 - 400) ppm
Precision ± 2%F.S.
Response Time T90 ≤ 30s
Ambient Temperature (5 - 40) °C
Ambient Pressure (86 - 106) kPa
Relative Humidity ≤ 85%
Electrical Parameters - Communication RS - 232/RS - 485, (4 - 20) mA
Electrical Parameters - Power Supply Rated voltage 220V ± 22V; Frequency 50Hz ± 1Hz
Display LCD display
Alarm Output Passive contact signal
