Ultra-Precision Vehicle Exhaust Analyzer KGD-WQ-521 With CO₂ Measuring Range 16.01-18.0 ×10⁻²
Ultra-Precision Vehicle Exhaust Analyzer KGD-WQ-521 With CO₂ Measuring Range 16.01-18.0 ×10⁻²
Specifications
Brand Name :
KACISE
Model Number :
KGD-WQ-521
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
HC Measuring Range :
(0 - 2000)×10⁻⁶, (2001 - 5000)×10⁻⁶, (5001 - 9999)×10⁻⁶
CO Measuring Range :
(0.00 - 10.00)×10⁻², (10.01 - 14.00)×10⁻²
CO₂ Measuring Range :
(0.0 - 16.0)×10⁻², (16.01 - 18.0)×10⁻²
Description

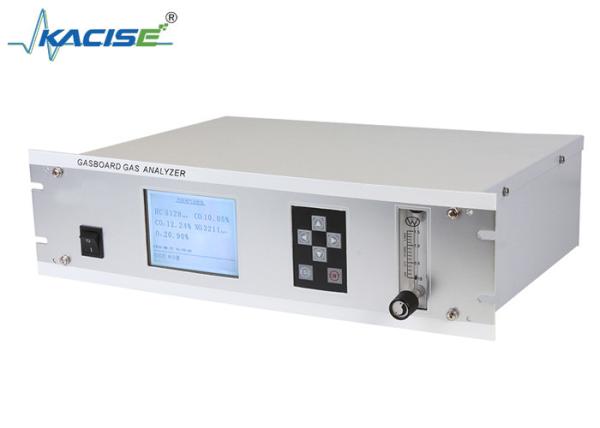

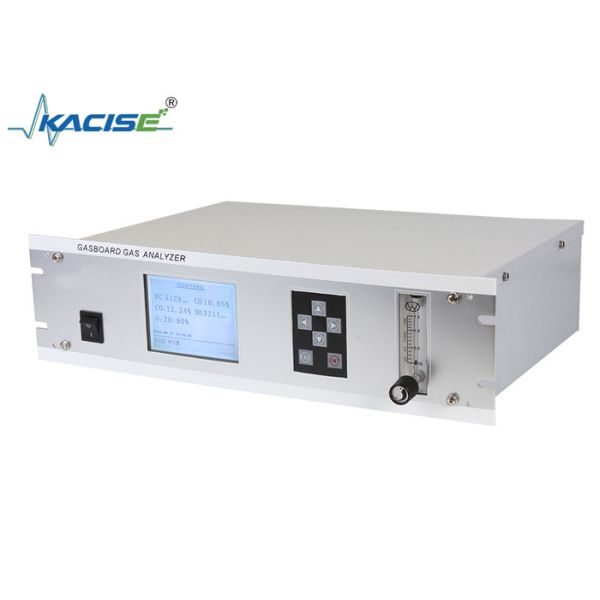

KGD - WQ - 521 Ultra - High - Precision Vehicle Exhaust Analyzer is used for the monitoring and analysis of vehicle exhaust.

Product Introduction

The KGD - WQ - 521 Ultra - High - Precision Vehicle Emission Analyzer adopts the company's patented dual - beam micro - flow infrared technology to measure the concentrations of CO, HC, CO₂, and NO in vehicle exhaust in real - time. It meets the measurement requirements of grade 00 specified in the latest national standard GB 18285 "Limits and Measurement Methods for Emissions from Gasoline - fueled Vehicles (Double - Idle Speed Method and Simple Driving Cycle Method

Ultra-Precision Vehicle Exhaust Analyzer KGD-WQ-521 With CO₂ Measuring Range 16.01-18.0 ×10⁻²

Product Features

  • Designed with dual - optical - path micro - flow infrared gas sensors.
  • Simultaneously measures the concentrations of CO, CO₂, HC, NO, and O₂.
  • Automatic constant - temperature technology eliminates the influence of the external environment.
  • Filter gas chamber design reduces gas cross - interference.
  • Has a low detection limit to meet the measurement requirements of grade 00 low - emission exhaust.

Technical Parameters

Gas Type Measuring Range Absolute Error Relative Error
HC (0 - 2000)×10⁻⁶, (2001 - 5000)×10⁻⁶, (5001 - 9999)×10⁻⁶ ± 4×10⁻⁶, --, -- ± 3%, ± 5%, ± 10%
CO (0.00 - 10.00)×10⁻², (10.01 - 14.00)×10⁻² ± 0.02×10⁻², -- ± 3%, ± 5%
CO₂ (0.0 - 16.0)×10⁻², (16.01 - 18.0)×10⁻² ± 0.3×10⁻², -- ± 3%, ± 5%
NO₂ (0 - 4000)×10⁻⁶, (4001 - 5000)×10⁻⁶ ± 25×10⁻⁶, -- ± 4%, ± 8%
O₂ (0.00 - 25.0)×10⁻² ± 0.1×10⁻² ± 4%, ± 5%
