KGD - WQ - 518 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System
KGD - WQ - 518 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System
Specifications
Brand Name :
KACISE
Model Number :
KGD-WQ-518
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Measurement Index/Range :
Opacity N: (0 - 99.99)%, Light Absorption Coefficient K: (0 - 16) m⁻¹
Resolution :
N: 0.1%, K: 0.01 m⁻¹
Indication Error :
± 2.0%
Electrical Parameter - Communication :
Wi - Fi, Bluetooth digital output and print interface
Electrical Parameter - Power Supply :
The smoke meter has an internal battery (11.1V/35AH), sufficient for 8 - hour measurement. A high - power mobile power supply can also be connected externally.
Description

KGD - WQ - 518 Non - Road Machinery/Diesel Vehicle Exhaust Smoke Detection System

Product Introduction

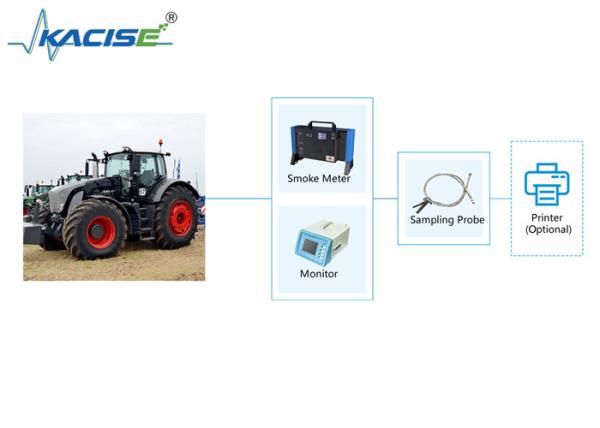

The basic version of the KGD - WQ - 518 Non - Road Machinery/Diesel Vehicle Exhaust Smoke Detection System is equipped with a transmissive smoke meter, a sampling probe, a high - strength case, a tablet computer, and professional non - road testing software. A video camera and a printer are optional. It can measure the exhaust smoke of engines/diesel vehicles. The system adopts a portable design. The transmissive smoke meter is integrated with a high - capacity battery, enabling on - vehicle measurement and real - time monitoring of emission levels under actual operating conditions. The detection process is highly automated, not restricted by on - site and environmental conditions, which shortens the detection time for a single engine/vehicle and improves the work efficiency of road inspections, spot checks, and enterprise supervision inspections.

KGD - WQ - 518 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System

Product Features

  • Simultaneously displays opacity and light absorption coefficient.
  • Enables storage and query of detection data.
  • Reserves interfaces for oil temperature and rotational speed.
  • The transmissive smoke meter has an integrated high - capacity battery, and an external power supply can also be optionally used online.
  • Can detect exhaust opacity in real - time and under free - acceleration operating conditions.
  • A video shooting module is optional for video - based electronic evidence collection during law enforcement inspections.

Technical Parameters

Measurement Index/Range Opacity N: (0 - 99.99)%, Light Absorption Coefficient K: (0 - 16) m⁻¹
Resolution N: 0.1%, K: 0.01 m⁻¹
Indication Error ± 2.0%
Electrical Parameter - Communication Wi - Fi, Bluetooth digital output and print interface
Electrical Parameter - Power Supply The smoke meter has an internal battery (11.1V/35AH), sufficient for 8 - hour measurement. A high - power mobile power supply can also be connected externally.
