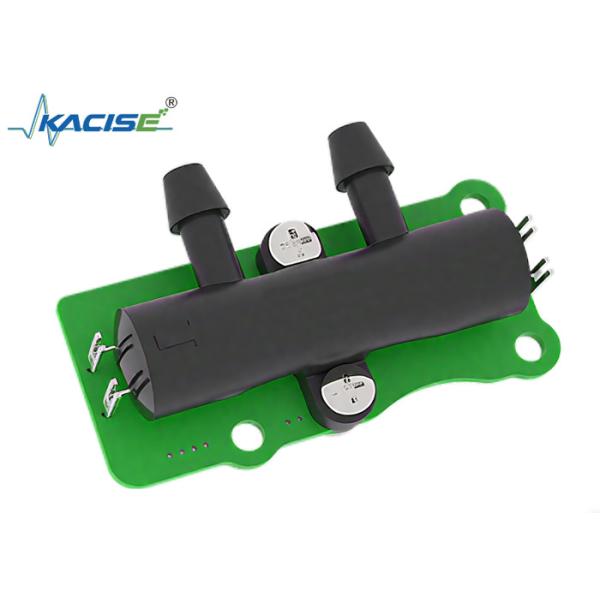

Ultrasonic Oxygen Sensor KGD GAS 422 Precise Ultrasonic Measurement Principle
Ultrasonic Oxygen Sensor KGD GAS 422 Precise Ultrasonic Measurement Principle
Specifications
Detection Range :
O₂ concentration: 0 - 100%, Flow rate: TBD
Detection Accuracy :
O₂ concentration: ±2.0%FS@(5 - 50)°C, Flow rate: TBD
Detection Principle :
Ultrasonic measurement principle
Brand Name :
KACISE
Model Number :
KGD-GAS-422
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Operating Conditions :
5 - 50°C, 0 - 95%RH (non - condensing)
Response Time :
O₂ concentration: ≤1.5s
Resolution :
O₂ concentration: 0.1%, Flow rate: TBD
Description
Ultrasonic Oxygen Sensor KGD GAS 422 Precise Ultrasonic Measurement Principle
Key Specifications
Attribute Value
Detection Principle Ultrasonic measurement principle
Detection Range O₂ concentration: 0 - 100%, Flow rate: TBD
Detection Accuracy O₂ concentration: ±2.0%FS@(5 - 50)°C, Flow rate: TBD
Resolution O₂ concentration: 0.1%, Flow rate: TBD
Response Time O₂ concentration: ≤1.5s
Operating Conditions 5 - 50°C, 0 - 95%RH (non-condensing)
Product Overview

Ultrasonic Oxygen Sensor KGD - GAS - 422 is an economical and practical sensor designed for measuring gas flow rate in binary gases. Featuring compact dimensions, rapid response time, high accuracy, and zero offset, this sensor is optimized from the mature Gasboard - 7500H ultrasonic oxygen sensor for broader application scenarios.

Ultrasonic Oxygen Sensor KGD GAS 422 Precise Ultrasonic Measurement Principle
Key Features
  • Simultaneous measurement of oxygen concentration and flow rate
  • Full-range temperature compensation
  • Compact size with fast response and stable, high-accuracy measurements
  • Meets requirements for medical and other special applications
  • Long service life with maintenance-free operation
  • Serial port output for accurate measurement values
Technical Specifications
Parameter Details
Detection Principle Ultrasonic measurement principle
Detection Range O₂ concentration: 0 - 100%, Flow rate: TBD
Detection Accuracy O₂ concentration: ±2.0%FS@(5 - 50)°C, Flow rate: TBD
Resolution O₂ concentration: 0.1%, Flow rate: TBD
Response Time O₂ concentration: ≤1.5s
Operating Conditions 5 - 50°C, 0 - 95%RH (non-condensing)
Storage Conditions -20 - 60°C, 0 - 95%RH (non-condensing)
Operating Voltage DC 4.75 - 5.25V, ripple ≤ 50mV
Average Operating Current ≤35mA
Communication Interface UART_TTL(3.3V)
Product Dimensions W50*H22*D31mm
Product Lifetime >5 years
