Ultrasonic Oxygen Flowmeter KGD - GAS - 423 For High - Flow Humidified Oxygen Therapy Devices
Ultrasonic Oxygen Flowmeter KGD - GAS - 423 For High - Flow Humidified Oxygen Therapy Devices
Specifications
Brand Name :
KACISE
Model Number :
KGD-GAS-423
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Detection Principle :
Ultrasonic measurement principle
Detection Range :
Oxygen concentration: 0 - 100%，Flow rate: 0 - 240L/min
Detection Accuracy :
Oxygen concentration: ±3%F.S. @(5 - 45)°C，Flow rate: ±2%
Resolution :
Oxygen concentration: 0.1%，Flow rate: 0.1L/min
Operating Conditions :
-20 °C - 55 °C, 0 - 95%RH (non - condensing)
Storage Conditions :
-20 °C - 70 °C, 0 - 95%RH (non - condensing)
Description

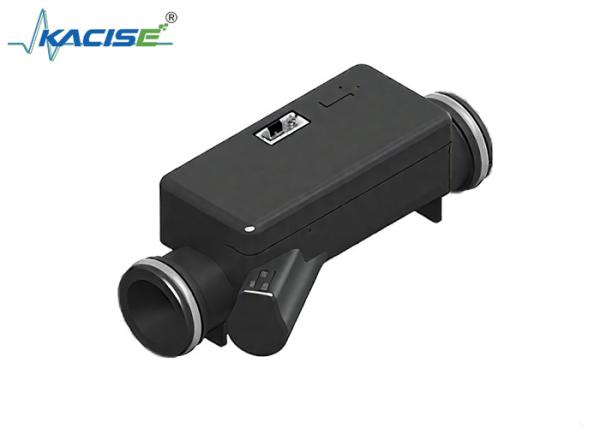

Ultrasonic Oxygen Flowmeter KGD - GAS - 423 for High - flow Humidified Oxygen Therapy Devices

Product Introduction

The Ultrasonic Oxygen Flowmeter KGD - GAS - 423 is a five - in - one combined sensor based on ultrasonic technology. It can simultaneously measure flow rate, oxygen concentration, atmospheric pressure, temperature, and humidity, with a flow range of up to 240L/min. It is applied in high - flow humidified oxygen therapy devices, medical ventilators, and the detection of binary gases including oxygen. It has the advantages of high accuracy, fast response, no drift, no need for regular calibration, and maintenance - free.

Ultrasonic Oxygen Flowmeter KGD - GAS - 423 For High - Flow Humidified Oxygen Therapy Devices

Product Features

  • Ultrasonic technology, maintenance - free and drift - free
  • Simultaneous measurement of oxygen concentration and gas flow rate
  • 2ms fast response to meet flow regulation requirements
  • Full - range temperature and humidity compensation
  • Service life of over 10 years

Technical Parameters

Item Details
Detection Principle Ultrasonic measurement principle
Detection Range Oxygen concentration: 0 - 100%,Flow rate: 0 - 240L/min
Detection Accuracy Oxygen concentration: ±3%F.S. @(5 - 45)°C,Flow rate: ±2%
Resolution Oxygen concentration: 0.1%,Flow rate: 0.1L/min
Response Time Oxygen concentration: <1s
Flow rate: <2ms
Operating Conditions -20 °C - 55 °C, 0 - 95%RH (non - condensing)
Storage Conditions -20 °C - 70 °C, 0 - 95%RH (non - condensing)
Communication Mode UART_TTL; I²C (customizable)
