Ultrasonic Oxygen Sensor KGD-GAS-427 for Oxygen Detection in Various Environments
Ultrasonic Oxygen Sensor KGD-GAS-427 for Oxygen Detection in Various Environments
Specifications
Brand Name :
KACISE
Model Number :
KGD - GAS - 427
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Response Time :
Concentration: ≤1.5s; Flow rate: ≤0.3s
Operating Conditions :
-5 °C - 50 °C, 0 - 95%RH (non - condensing)
Storage Conditions :
-20 °C - 60 °C, 0 - 95%RH (non - condensing)
Operating Voltage :
DC 4.75V - 12.6V; Ripple <50mA
Average Operating Current :
<35mA
Signal Output :
UART_TTL(3.3V)
Description

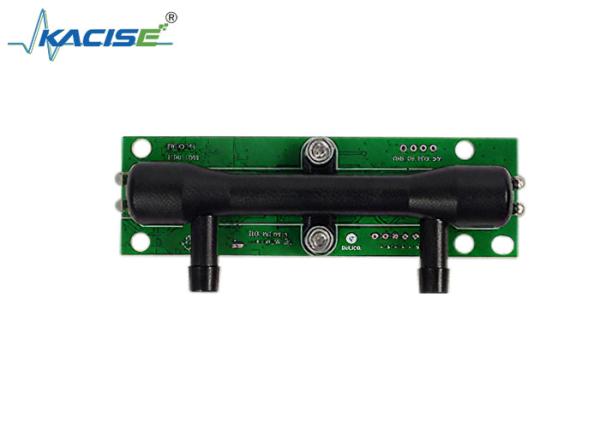

Ultrasonic Oxygen Sensor KGD-GAS -427

Product Introduction

The KGD - GAS - 427 ultrasonic oxygen sensor is an economical and practical sensor used to measure the flow rate and concentration of oxygen in binary gases. This new - type oxygen sensor is developed to meet market demands, featuring a compact size and wide - voltage power supply, enabling more flexible applications.

Ultrasonic Oxygen Sensor KGD-GAS-427 for Oxygen Detection in Various Environments

Product Features

  • Simultaneously measure oxygen concentration and flow rate
  • Full - range temperature compensation
  • Meet CMC, CE, EMC, and ROHS certification requirements
  • Compact size for more flexible applications
  • Long - term use with lifetime calibration - free

Technical Parameters

Item Details
Detection Principle Ultrasonic measurement principle
Detection Range O₂ concentration: 0 - 100% (For PSA oxygen generator: 20.5% - 95.6%)
O₂ flow rate: 0 - 10L/min
Detection Accuracy O₂ concentration: ±1.5%FS@(5 - 45)°C
O₂ flow rate: ±0.2L/min@(5 - 45)°C
Resolution O₂ concentration: 0.1%
O₂ flow rate: 0.1L/min
Response Time Concentration: ≤1.5s; Flow rate: ≤0.3s
Operating Conditions -5 °C - 50 °C, 0 - 95%RH (non - condensing)
Storage Conditions -20 °C - 60 °C, 0 - 95%RH (non - condensing)
Operating Voltage DC 4.75V - 12.6V; Ripple <50mA
Average Operating Current <35mA
Signal Output UART_TTL(3.3V)
Product Dimensions W100*H22*D30 (mm)
