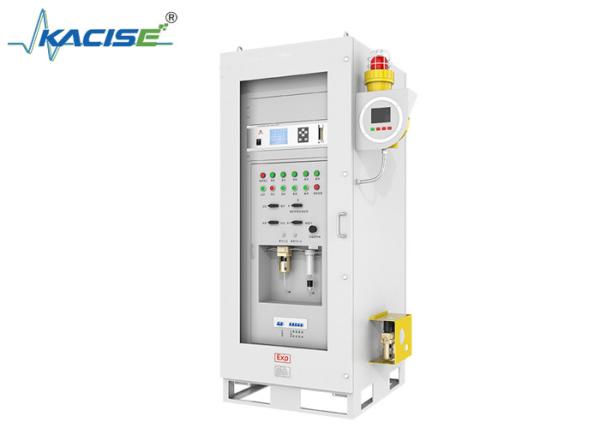

On - line Gas Analysis System KGD - MQ - 504 for Industrial Safety

Product Introduction

The KGD - MQ - 504 on - line gas analysis system is designed for specific working conditions where the sample gas contains dust, moisture, and tar. It consists of three parts: a pretreatment unit, a control unit, and a gas analysis unit. Based on the non - dispersive infrared (NDIR) gas analysis technology with independent intellectual property rights, it can simultaneously and continuously measure the calorific value of coal gas and biogas on - line, as well as the volume concentrations of gases such as CO, CO₂, CH₄, H₂, O₂, and CₙHₘ, and calculate the calorific value. This is beneficial for improving the utilization efficiency of coal gas, saving energy and reducing consumption, and ensuring the safety of industrial sites.

Product Features

• Pretreatment Unit: Long service life and stable performance. Straight - tube or steam sampling probes can be selected according to different tar contents to effectively remove tar from the sample gas. A single - stage refrigerator is configured to remove moisture from the sample gas, and two - stage filtration is achieved to ensure long - term on - line operation of the instrument.
• Control Unit: Fully automated detection with simple operation. It is controlled by a PLC program and can automatically complete operations such as changing water in the water scrubber, sampling, and troubleshooting.
• Gas Analysis Unit: Simultaneously measures gas volume concentration and calorific value. The Gasboard - 3100 (on - line type) coal gas analyzer with independent intellectual property rights is used for on - line gas analysis and detection. It can simultaneously measure the volume concentrations of multi - component gases such as CO, CO₂, CH₄, H₂, O₂, and CₙHₘ, automatically calculate and display the calorific value of coal gas and biogas, replacing the combustion - type calorific value meter.
• Low maintenance and operation costs. With a 10 - inch touch screen, it can monitor and display the system operation status in real - time without the need for manual on - site operation, greatly reducing enterprise costs.
• Intelligent data management. Data can be transmitted to the superior centralized control system through multiple interfaces, providing real - time basis for remote monitoring and adjusting on - site processes.

Technical Parameters
