Battery Thermal Runaway Monitoring Sensor KGD - ATRS - 319
Battery Thermal Runaway Monitoring Sensor KGD - ATRS - 319
Specifications
Brand Name :
KACISE
Model Number :
KGD-ATRS-319
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Data Refresh :
≤1s
Response Time :
T90 < 15s
Output Mode :
CAN/LIN/UART/analog voltage
Operating Conditions :
-40°C - +85°C; 0 - 90%RH (non - condensing)
Storage Conditions :
-40°C - 110°C; 0 - 99%RH (non - condensing)
Supply Voltage :
9 - 16VDC, standard voltage +12VDC
Description

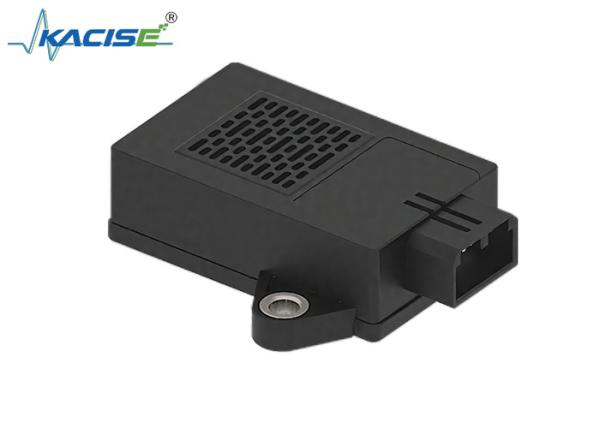

Battery Thermal Runaway Monitoring Sensor KGD - ATRS - 319
Product Introduction
The battery thermal runaway monitoring sensor KGD - ATRS - 319 can effectively monitor indicators such as CO₂+CO, temperature, and pressure released before battery thermal runaway is triggered, and transmit the measurement signals to the BMS through CAN communication. This solution has significant characteristics such as accurate measurement, fast response time, less cross - interference, low power consumption, and long service life.
Battery Thermal Runaway Monitoring Sensor KGD - ATRS - 319
Product Features
  • For CO₂ measurement, Non - Dispersive Infrared (NDIR) spectroscopy absorption technology is adopted. In the measurement range of 0 - 10000ppm, the accuracy can reach ±(50ppm + 5% of the reading); the response time is fast with T90 < 15s, there is no gas cross - interference, the ultra - low power consumption mode can reach μA level, and the service life can reach 15 years.
  • For CO measurement, a self - designed MEMS production line is used to produce metal oxide semiconductor MOX sensors. Electronic nose technology is adopted to screen for good selectivity for CO gas, with little influence from temperature and humidity, and stable detection signals. Meanwhile, it can expand the detection of various other gases according to the manufacturer's research results on thermal runaway; the service life of the semiconductor CO sensor exceeds 15 years, and it has corrosion resistance to silicone gases.
  • The MEMS MOX sensor for CO measurement has little influence from temperature and humidity, stable detection signals, and can expand the detection of various gases; its service life exceeds 15 years, and it has good corrosion resistance to silicone gases.
  • The module adopts a vehicle - grade mature circuit design and can adapt to harsh vehicle - mounted environments.
  • CAN real - time communication, with a protection level up to IP65.

Technical Parameters

Items Details
Detection Principle CO₂: Dual Beam NDIR (Non - Dispersive Infrared) spectroscopy absorption technology
CO: Metal Oxide Semiconductor (MOX) gas detection technology
Pressure: Piezoresistive type
Temperature: Negative Temperature Coefficient (NTC) thermistor
Detection Parameters CO₂, CO, temperature, pressure (CH₄ + H₂ can be extended and customized)
Detection Range CO₂: 0ppm - 10000ppm
CO: 1 - 1000ppm
Air pressure: 80kPa - 120kPa
Temperature: -40°C - 125°C
Resolution 1ppm
Detection Accuracy CO₂: ±(50ppm + 5% of the reading)
CO: ±40ppm or ±30% of the reading (take the larger value)
Pressure: ±1kPa
Temperature: ±2°C
Data Refresh ≤1s
Response Time T90 < 15s
Output Mode CAN/LIN/UART/analog voltage
Operating Conditions -40°C - +85°C; 0 - 90%RH (non - condensing)
Storage Conditions -40°C - 110°C; 0 - 99%RH (non - condensing)
Supply Voltage 9 - 16VDC, standard voltage +12VDC
Average Operating Current ≤100mA, @+12VDC (can activate low - power mode, supporting 24 - hour online monitoring)
Standby Current ≤100μA, sleep mode
