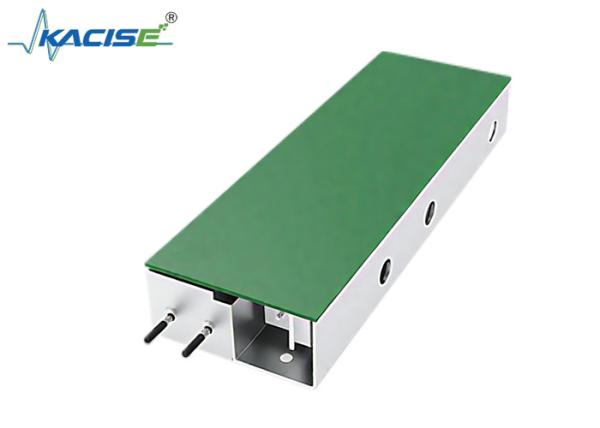

Laser Oxygen Sensor KGD - GAS - 402 for Anesthesia Machines
Laser Oxygen Sensor KGD - GAS - 402 for Anesthesia Machines
Specifications
Brand Name :
KACISE
Model Number :
KGD-GAS-402
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Test Gas :
Oxygen (O₂)
Detection Principle :
Tunable Diode Laser Absorption Spectroscopy (TDLAS)
Detection Range :
0 - 100%
Detection Accuracy :
±0.3%FS
Resolution :
0.0001
Response Time :
170ms±15ms @ 150ml/min (10 - 90%), 100ms±15ms @ 350ml/min (10 - 90%)
Description

Laser Oxygen Sensor KGD - GAS - 402 for Anesthesia Machines

Product Introduction

The Laser Oxygen Sensor KGD - GAS - 402 is an oxygen sensor designed based on the principle of Tunable Diode Laser Absorption Spectroscopy (TDLAS). It can quickly, in real - time, and accurately measure oxygen concentration. It is applied in medical equipment such as cardiopulmonary exercise instruments, anesthesia machines, and ventilators. It can replace paramagnetic oxygen sensors and has the advantages of fast response speed, long service life, and being unaffected by vibrations and environmental factors.

Laser Oxygen Sensor KGD - GAS - 402 for Anesthesia Machines

Product Features

  • Adopts TDLAS technology with a detection accuracy of up to 0.3%FS
  • Fast response in 170ms (T90)
  • Maintenance - free, no consumables, with a service life of over 10 years
  • Unaffected by vibrations and environmental factors
  • Good compatibility, capable of simultaneously measuring CO₂ concentration

Technical Parameters

Items Details
Test Gas Oxygen (O₂)
Detection Principle Tunable Diode Laser Absorption Spectroscopy (TDLAS)
Detection Range 0 - 100%
Detection Accuracy ±0.3%FS
Resolution 0.01%
Response Time 170ms±15ms @ 150ml/min (10 - 90%), 100ms±15ms @ 350ml/min (10 - 90%)
Startup Time <25s
Operating Conditions -10 - 50°C, 0 - 95%RH (non - condensing)
Storage Conditions -30 - 70°C, 0 - 95%RH (non - condensing)
Output Mode RS - 232 (default)/RS - 485 (reserved), (0 - 1)V analog output
Operating Voltage 12V ±10%
Operating Current 1.8A
Product Dimensions L180*W60*H30mm
Product Lifetime ≥10 years
