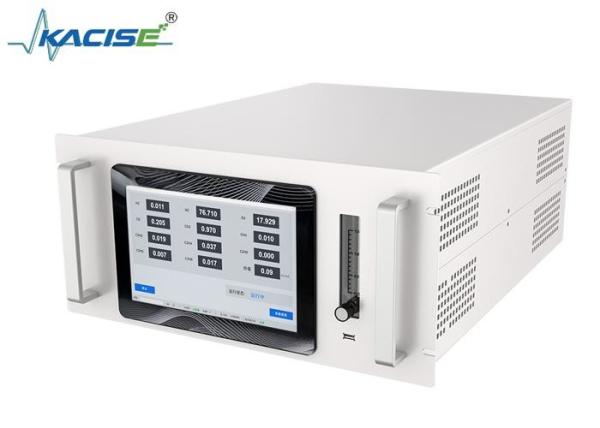

Laser Raman Spectroscopy Gas Analyzer KGD - MQ - 506

Product Introduction

The KGD - MQ - 506 Laser Raman Spectroscopy Gas Analyzer optimizes the optical path and structure, greatly reducing the overall size of the Raman analyzer. The new - generation product is more compact and portable. Based on the principle of laser Raman scattering, the KGD - MQ - 506 enhances, collects, processes, and identifies the characteristic Raman scattering spectra of the gases to be measured. It can conduct quantitative calculations of gas components and achieve on - line, real - time qualitative and quantitative monitoring of multiple types of gases. It has a second - level response, eliminating the need for long waiting.

Product Features

• On - line real - time detection. One instrument can solve the full - process monitoring of industrial process gases.
• Capable of measuring multiple gas components including H₂, N₂, O₂, CO, CO₂, CH₄, H₂S, etc.
• Adopts laser Raman gas characteristic fingerprint spectrum technology with strong anti - interference ability.
• Full - range gas concentration measurement with a detection range of 0 - 100%.
• Intelligent software design with a full - touch screen interface. Data is displayed intuitively, and an external PC keyboard can be connected.
• Can replace Gas Chromatography (GC) and Mass Spectrometry (MS).

Laser Raman Spectroscopy Technology

Laser Raman spectroscopy technology is a spectroscopic gas analysis technology based on gas Raman scattering. It uses a laser with high beam quality to emit laser light of a specific wavelength, which is focused in the gas chamber through an achromatic lens. At the focal point, the laser collides with gas molecules to generate Raman scattering. The intensity of the Raman characteristic peak is directly proportional to the gas concentration value. By measuring and analyzing the position and intensity of the Raman characteristic peak with a spectrometer, simultaneous measurement of multi - component gases can be achieved. Since the excitation and collection of the Raman scattering spectrum occur instantaneously in a very short time and signal collection can be carried out in real - time, compared with chromatography and mass spectrometry, the Raman spectrometer has a faster response speed.
