In - Situ Laser Process Gas Analyzer Transmissive Type KGD - MQ - 507 For Measuring Gas Concentration
In - Situ Laser Process Gas Analyzer Transmissive Type KGD - MQ - 507 For Measuring Gas Concentration
Specifications
Brand Name :
KACISE
Model Number :
KGD-MQ-507
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Measured Components :
H₂S, O₂, CO, CO₂, CH₄
Measurement Principle :
TDLAS
Installation Method :
In - situ Installation
Accuracy :
≤ ±1%F.S.
Description

In - situ Laser Process Gas Analyzer (Transmissive Type) KGD - MQ - 507 for Measuring Gas Concentration

Product Introduction

The KGD - MQ - 507 In - situ Laser Process Gas Analyzer is a high - performance optical analysis instrument based on Tunable Diode Laser Absorption Spectroscopy (TDLAS) technology. It adopts a transmissive design and can be used for industrial process gas control. With a fast response time, which is generally calculated in seconds for in - situ measurement, it avoids the time delay caused by sampling - type measurement and can promptly reflect the concentration of the measured gas on - line.

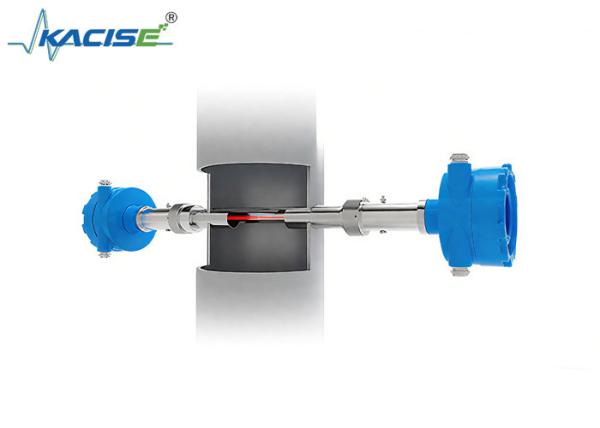

In - Situ Laser Process Gas Analyzer Transmissive Type KGD - MQ - 507 For Measuring Gas Concentration

Product Features

  • Using TDLAS technology, the measured gas is not affected by cross - interference from background gases.
  • In - situ installation, no sampling pretreatment system is required.
  • Fast response (T90 ≤ 1s), which can reflect gas concentration in real - time.
  • Real - time on - line measurement, with less distortion of gas concentration and high measurement accuracy.
  • Has good adaptability in harsh measurement environments such as high temperature, high dust, high moisture, high corrosion, and high flow velocity.
  • Explosion - proof and flame - proof design, with a high safety factor.
  • Simple structure, no moving parts, no consumable parts, and maintenance - free.

Technical Parameters

Performance Parameters
Measured Components H₂S, O₂, CO, CO₂, CH₄
Measurement Principle TDLAS
Installation Method In - situ Installation
Test Range H₂S: 0 - 100ppm, 0 - 5000ppm
O₂: (0 - 5) %VOL (Can be customized to 100%)
CO: (0 - 100) %VOL
CO₂: (0 - 100) %VOL
CH₄: (0 - 20) %VOL
Accuracy ≤ ±1%F.S.
Repeatability ≤ ±1%
Span Drift ≤ ±1%F.S.
Resolution 0.01%VOL
Response Time T90 ≤ 1s
Operating Parameters
Explosion - proof Grade Ex db IIC T6 Gb / Ex tb IIIC T80℃ Db
Ambient Temperature (-20 - +60)℃
Operating Power Supply 24V DC, 24W
Purge Gas (0.3 - 0.8) MPa Industrial Nitrogen
Interface Signal Interface Signal
Communication RS485, RS232
Output Mode 2 - way 4 - 20mA output, 3 - way relay output
