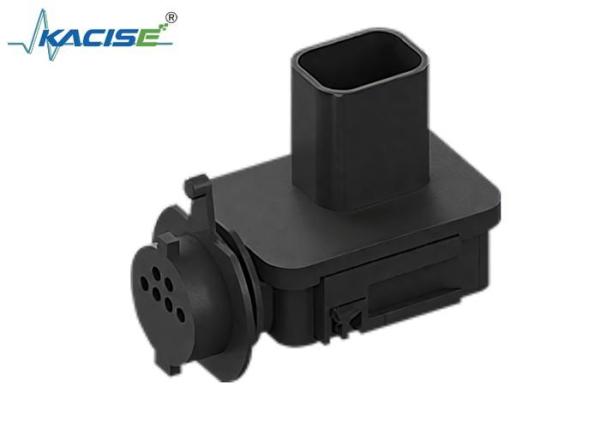

Automotive Air Quality Sensor KGD - AQM - 303 For Maintaining In - Vehicle Air Freshness
Automotive Air Quality Sensor KGD - AQM - 303 For Maintaining In - Vehicle Air Freshness
Specifications
Detection Objects :
CO, NO₂, NH₃ (optional)
Relative Humidity :
0 - 99%RH (non - condensing)
Gas Flow Rate :
≤10m/s
Technical Principle :
Metal Oxide Semiconductor (MOX)
Storage Temperature :
-40°C - 120°C
Operating Temperature :
-40°C - 85°C
Brand Name :
KACISE
Model Number :
KGD-AQM-303
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Description
Automotive Air Quality Sensor KGD - AQM - 303 For Maintaining In-Vehicle Air Freshness
Product Attributes
Attribute Value
Technical Principle Metal Oxide Semiconductor (MOX)
Detection Objects CO, NO₂, NH₃ (optional)
Gas Flow Rate ≤10m/s
Operating Temperature -40°C - 85°C
Storage Temperature -40°C - 120°C
Relative Humidity 0 - 99%RH (non-condensing)
Product Description

Automotive Air Quality Sensor KGD - AQM - 303 for Maintaining In-vehicle Air Freshness

Product Introduction

The KGD - AQM - 303 automotive air quality sensor is a vehicle-grade air quality sensor based on MOX principle and MEMS manufacturing process. By detecting redox gases in the environment, it can determine the air quality level at the air-conditioning intake, and achieve automatic control of the air-conditioning intake valve through the ECU to maintain in-vehicle air freshness.

Automotive Air Quality Sensor KGD - AQM - 303 For Maintaining In - Vehicle Air Freshness
Product Features
  • Adopts MEMS chip gas sensor technology
  • Achieves complete self-control from micro-hotplates, sensor pastes to chip packaging
  • Vehicle-grade circuit design, enabling the sensor module to adapt to harsh in-vehicle environments
  • Simultaneous monitoring of multiple components such as CO, NO₂, NH₃ (optional)
Technical Parameters
Items Details
Technical Principle Metal Oxide Semiconductor (MOX)
Detection Objects CO, NO₂, NH₃ (optional)
Gas Flow Rate ≤10m/s
Operating Temperature -40°C - 85°C
Storage Temperature -40°C - 120°C
Relative Humidity 0 - 99%RH (non-condensing)
Supply Voltage 9V - 16.2V (standard voltage DC 12V)
Operating Current ≤40mA
Quiescent Current ≤100μA
Protection Level IP6K7
Communication Method LIN/PWM
