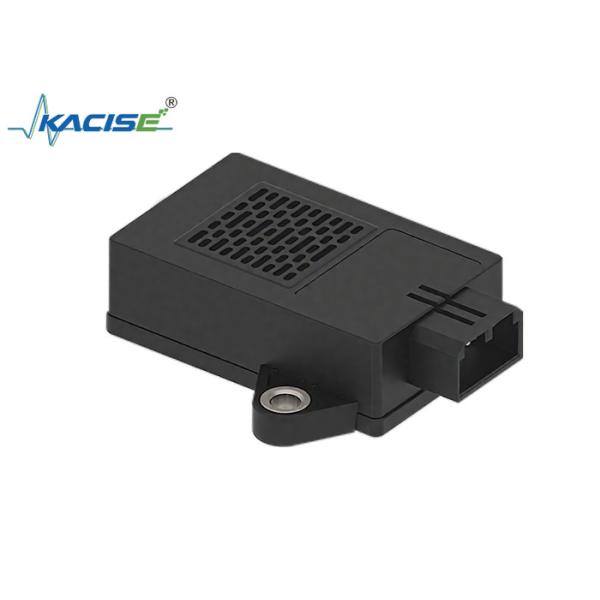

H₂ Detection Thermal Conductivity Sensor KGD ATRS 313 with Wide Detection Range and High Sensitivity
H₂ Detection Thermal Conductivity Sensor KGD ATRS 313 with Wide Detection Range and High Sensitivity
Specifications
Detection Type :
H₂
Response Time :
T80 ≤ 20s
Brand Name :
KACISE
Model Number :
KGD-ATRS-313
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Detection Range :
0 - 4%vol
Detection Principle :
Thermal Conductivity Technology (TC)
Data Refresh :
≤1s
Detection Accuracy :
±(0.1%vol + 10% of the reading)
Description
H₂ Detection Thermal Conductivity Sensor KGD ATRS 313 with Wide Detection Range and High Sensitivity
Product Overview

The KGD - ATRS - 313 thermal conductivity hydrogen sensor is a hydrogen sensor based on thermal conductivity (TC) technology. It uses the method of gas thermal conductivity measurement to achieve early and rapid warning for the thermal runaway of automotive power batteries, lithium-battery energy storage, and hydrogen energy applications, thereby improving safety. Meanwhile, it can effectively monitor hydrogen leakage and transmit the measurement signals to the main control system through CAN communication.

H₂ Detection Thermal Conductivity Sensor KGD ATRS 313 with Wide Detection Range and High Sensitivity
Key Features
  • For H₂ measurement, thermal conductivity technology (TC) is adopted, with an accuracy of ±(0.1%vol + 10% of the reading) within the measuring range of 0 - 4%vol
  • Fast response time with T80 ≤ 2s, and a service life of up to 15 years
  • Vehicle-grade mature circuit design, enabling adaptation to harsh in-vehicle and energy-storage environments
  • CAN real-time communication, with protection level meeting IP54 requirements
Technical Specifications
Parameter Specification
Detection Principle Thermal Conductivity Technology (TC)
Detection Type H₂
Detection Range 0 - 4%vol
Detection Accuracy ±(0.1%vol + 10% of the reading)
Data Refresh ≤1s
Response Time T80 ≤ 20s
Output Method CAN
Designed Service Life >15 years
Operating Conditions -40°C - +85°C; 0 - 99%RH (non-condensing)
Storage Conditions -40°C - +95°C; 0 - 99%RH (non-condensing)
Operating Pressure 80kPa - 120kPa
Protection Level IP54
Supply Voltage 9VDC - 36VDC, rated voltage +12VDC/+24VDC (compatible)
Average Working Current ≤60mA
