Particulate Matter Sensor KGD - 326 for Measuring Diesel Particles
Particulate Matter Sensor KGD - 326 for Measuring Diesel Particles
Specifications
Accuracy :
±1.5mg/m (Range < 10mg/m³), ±15% (Range > 10mg/m³)
Response Time :
T10 - 90 < 20s
Measurement Range :
0 < PM Concentration < 25mg/m³
Ignition Time :
<750s at a soot concentration of 3mg/m³, <300s at a soot concentration of 8mg/m³
Brand Name :
KACISE
Model Number :
KGD-326
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Maximum Gas Temperature :
Continuous heating to 850°C peak temperature: up to 950°C, lasting 5x60s. During sensor operation < 400°C
Description
Particulate Matter Sensor KGD - 326 for Measuring Diesel Particles
Product Overview

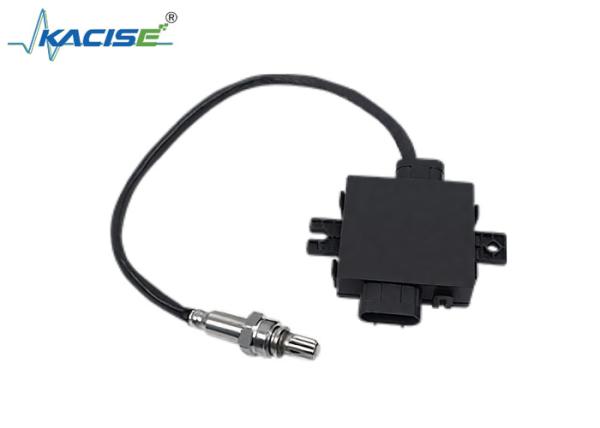

The particulate matter sensor KGD - 326 measures cumulative particulate matter (soot) mass in exhaust gas downstream of Diesel Particulate Filters (DPF) to evaluate DPF efficiency. Installed on Selective Catalytic Reduction (SCR) catalyst pipelines, this sensor combines a probe and electronic control module that communicates with the Powertrain Control Module (PCM) via J1939 data link.

Particulate Matter Sensor KGD - 326 for Measuring Diesel Particles
Key Features
  • Compact sensor design for easy integration
  • Integrated sensing element and heater for improved light-off efficiency
  • Includes Resistance Temperature Detector (RTD) element
  • Closed-loop heater control ensures precise sensor regeneration
  • Advanced diagnostic capabilities for reliable operation
Technical Specifications
Parameter Specification
Measurement Range 0 < PM Concentration < 25mg/m³
Accuracy ±1.5mg/m (Range < 10mg/m³), ±15% (Range > 10mg/m³)
Response Time T10 - 90 < 20s
Maximum Gas Temperature Continuous heating to 850°C peak temperature: up to 950°C, lasting 5x60s. During sensor operation < 400°C
Ignition Time <750s at 3mg/m³ soot concentration, <300s at 8mg/m³ soot concentration
Internal Components

The probe contains three critical components: a high-efficiency heater, precision temperature sensor, and high-resistance particulate matter measuring electrodes for accurate detection.
