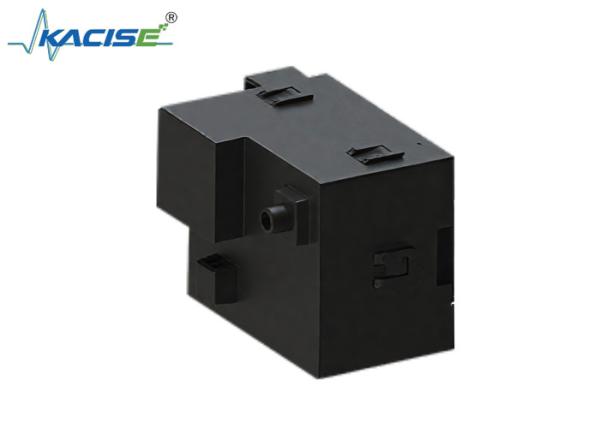

Automotive Negative Ion Generator KGD - AAG - 302 For Smoke And Dust Removal In Vehicles
Automotive Negative Ion Generator KGD - AAG - 302 For Smoke And Dust Removal In Vehicles
Specifications
Brand Name :
KACISE
Model Number :
KGD-AAG-302
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Negative Ion Generation Quantity :
≥3×10⁶ pcs/cm³
Residual Ozone Concentration :
≤0.05ppm
Operating Voltage :
21V - 27V
Operating Current :
≤30mA
Output High Voltage :
DC: -3.5 ± 0.5KV (1G)
Protection Resistance :
20 ± 2MΩ
Description

Automotive Negative Ion Generator KGD - AAG - 302 for Smoke and Dust Removal in Vehicles

Product Introduction

The KGD - AAG - 302 automotive negative ion generator is a device that generates air negative ions. It uses a carbon - element - made release tip with a DC negative high - voltage. The tip DC high - voltage generates a high corona to increase the negative ion content in the air, adsorb and settle positively - charged suspended particles in the air and other harmful substances such as viruses, bacteria, and formaldehyde, thus freshening the air, removing smoke and dust, and sterilizing, creating a more pleasant in - vehicle environment.

Automotive Negative Ion Generator KGD - AAG - 302 For Smoke And Dust Removal In Vehicles

Product Features

  • The output metal tip is corrosion - resistant and oxidation - resistant.
  • Dual - ion output.
  • Meets the fluctuation ranges of ISO 16750 - 2 and ISO 11452 - 4.
  • Over - voltage self - protection.
  • Meets the requirements of automotive EMC electromagnetic compatibility tests.
  • Wide - voltage input design (24V ± 3V).

Technical Parameters

Items Details
Negative Ion Generation Quantity ≥3×10⁶ pcs/cmATRS
Residual Ozone Concentration ≤0.05ppm
Operating Voltage 21V - 27V
Operating Current ≤30mA
Output High Voltage DC: -3.5 ± 0.5KV (1G)
Protection Resistance 20 ± 2MΩ
Withstand Voltage ≥3750V
