Hand - Held Electrolyte Leakage Detector KGD - AM - 311 For Detecting Electrolyte Leakage Content In The Tested Environment
Hand - Held Electrolyte Leakage Detector KGD - AM - 311 For Detecting Electrolyte Leakage Content In The Tested Environment
Specifications
Brand Name :
KACISE
Model Number :
KGD-AM-311
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Detection Principle :
Non - Dispersive Infrared (NDIR) Detection Technology
Detected Gas Types :
Electrolyte vapors such as DMC, EMC, EC
Sensitivity Levels :
High, Medium, Low
Maximum Sensitivity :
0.03 oz/year (1g/a) when stationary; 0.1 oz/year (3g/a) when in motion
Detection Feedback :
Red LED, LCD bar graph, LCD digits, Buzzer
Response Time (T90) :
<30 seconds (typical value)
Description

Hand - held Electrolyte Leakage Detector KGD - AM - 311 for Detecting Electrolyte Leakage Content in the Tested Environment

Product Introduction

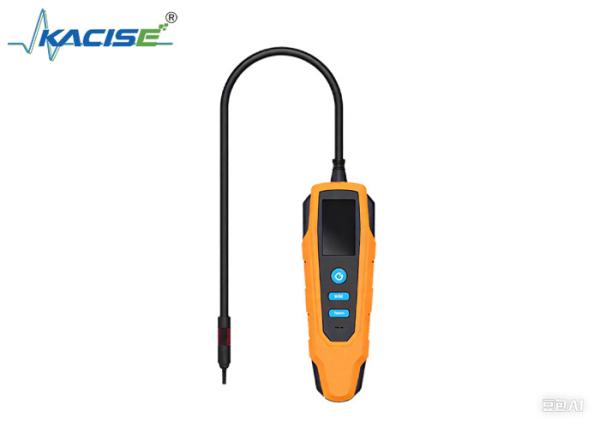

The hand - held electrolyte leakage detector KGD - AM - 311 is equipped with a TFT liquid - crystal display. It can not only detect leakage points, but also conduct quantitative analysis of the electrolyte leakage concentration in the current environment and display the current concentration data. Power on/off, detection start/stop, detection sensitivity setting, and automatic/manual zero - adjustment switching can be achieved through buttons. When electrolyte leakage is detected in the tested environment, the display will show the leakage level according to different concentrations, and the buzzer will sound a prompt. The red LED at the front end of the gooseneck probe will indicate the location of the alarm point. The detector is powered by a large - capacity lithium - ion battery, allowing for long - continuous operation. It can be recharged repeatedly, and it has a standard Type - C charging interface for charging anytime and anywhere.

Hand - Held Electrolyte Leakage Detector KGD - AM - 311 For Detecting Electrolyte Leakage Content In The Tested Environment

Product Features

  • Infrared - type sensor with independent intellectual property rights
  • High selectivity and good repeatability for electrolyte leakage
  • Ensures high detection accuracy across the full temperature and full - range
  • Fast response time
  • Powered by a lithium - ion battery, rechargeable
  • Fault self - check function
  • High reliability and long service life (over 10 years)
  • Data visualization
  • Small - sized and portable for detection

Technical Parameters

Items Details
Detection Principle Non - Dispersive Infrared (NDIR) Detection Technology
Detected Gas Types Electrolyte vapors such as DMC, EMC, EC
Sensitivity Levels High, Medium, Low
Maximum Sensitivity 0.03 oz/year (1g/a) when stationary; 0.1 oz/year (3g/a) when in motion
Detection Feedback Red LED, LCD bar graph, LCD digits, Buzzer
Response Time (T90) <30 seconds (typical value)
Recovery Time <10 seconds (typical value)
Preheating Time <12s
Display Resolution 1ppm
Accuracy ±(5ppm + 10% reading)
Display Range 0 - 9999ppm
Charging and Standby Time Charging time: 3.5H; Working time: 8H
Net Weight of the Machine 360g ± 20g
Designed Service Life 10 years
IP Protection Level IP54
Product Standard EN14624
Working Conditions 0 °C to 40 °C (32 °F to 104 °F); <75%RH (non - condensing)
Storage Conditions -20 °C to 60 °C (-4 °F to 140 °F); <80%RH
Applicable Scenarios Routine inspection of DMC, EMC, EC and other leakage
Input Voltage 5V ± 5%
Input Current 1A ± 5%
