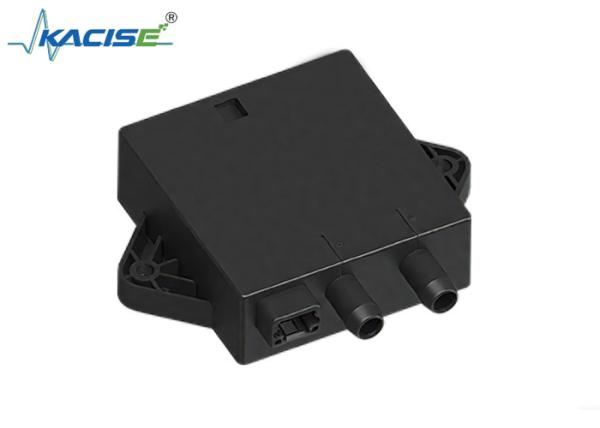

Automotive PM2.5 + CO₂ Integrated Sensor KGD - AIS - 304 For Monitoring In - Vehicle Temperature
Automotive PM2.5 + CO₂ Integrated Sensor KGD - AIS - 304 For Monitoring In - Vehicle Temperature
Specifications
Brand Name :
KACISE
Model Number :
KGD-AIS-304
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Detected Gases :
PM2.5, CO₂
Technical Principle :
PM2.5: Laser scattering；CO₂: Single - light - source NDIR, dual - channel
Detection Range :
PM2.5: 0 - 1000μg/m³；CO₂: 400 - 10000ppm
Response Time :
PM2.5: T90 ≤ 12s；CO₂: T90 ≤ 25s
Preheating Time :
<10s (start - up time)
Storage Temperature :
-40°C - 95°C
Description

Automotive PM2.5 + CO₂ Integrated Sensor KGD - AIS - 304 for Monitoring In - vehicle Temperature

Product Introduction
The KGD - AIS - 304 is a vehicle - used sensor based on optical principles. It can detect PM2.5 and CO₂, and can also be extended to monitor the in - vehicle temperature. This product meets accuracy requirements across the entire temperature range.
Automotive PM2.5 + CO₂ Integrated Sensor KGD - AIS - 304 For Monitoring In - Vehicle Temperature
Product Features
  • Dual - function detection of PM2.5 and CO₂, with the ability to extend for in - vehicle temperature monitoring.
  • Ensures measurement accuracy across the entire temperature and pressure range.
  • Protection level IP65, compact size.
Technical Parameters
Items Details
Detected Gases PM2.5, CO₂
Technical Principle PM2.5: Laser scattering；CO₂: Single - light - source NDIR, dual - channel
Detection Range PM2.5: 0 - 1000μg/mATRS；CO₂: 400 - 10000ppm
Detection Accuracy PM2.5: ±15% of the reading or ±15μg/mATRS (-20°C - 75°C, calibrated against TSI8530)
CO₂: 400ppm - 10000ppm -20°C - 75°C: ±100ppm or ±10%
-40°C - 20°C, 75°C - 90°C: ±200ppm or ±20% (take the larger value)
Response Time PM2.5: T90 ≤ 12s；CO₂: T90 ≤ 25s
Preheating Time <10s (start - up time)
Operating Temperature PM2.5: -40°C - 75°C
CO₂: -40°C - 85°C
Storage Temperature -40°C - 95°C
Installation Locations Automotive air - conditioning, glove box, dashboard, etc.
