Paper Flatbed Die Cutting Machines Web Guider for self adhesive label
Paper Flatbed Die Cutting Machines Web Guider for self adhesive label
Paper Flatbed Die Cutting Machines Web Guider for self adhesive label
Paper Flatbed Die Cutting Machines Web Guider for self adhesive label
Paper Flatbed Die Cutting Machines Web Guider for self adhesive label
Paper Flatbed Die Cutting Machines Web Guider for self adhesive label
Paper Flatbed Die Cutting Machines Web Guider for self adhesive label
Paper Flatbed Die Cutting Machines Web Guider for self adhesive label
Specifications
Brand Name :
ruiting
Model Number :
RTSS-330
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 days
Delivery Time :
20 working days
Packaging Details :
wooden case
Warranty :
1 Year
Voltage :
380V, 3 phase (can make as your request)
Condition :
New
After-sales service provided :
Engineers available to service machinery overseas
Computerized :
Yes
Dimension(l*w*h) :
2.6(L)×1.2(W)×1.5(H)(m)
Type :
flatbed label die cutting machine
Weight :
About3000kg
Power(w) :
11kw
Max unwinding diameter :
330mm
Description

Title

paper die cut letters flatbed die cutting for self adhesive label

Product Description

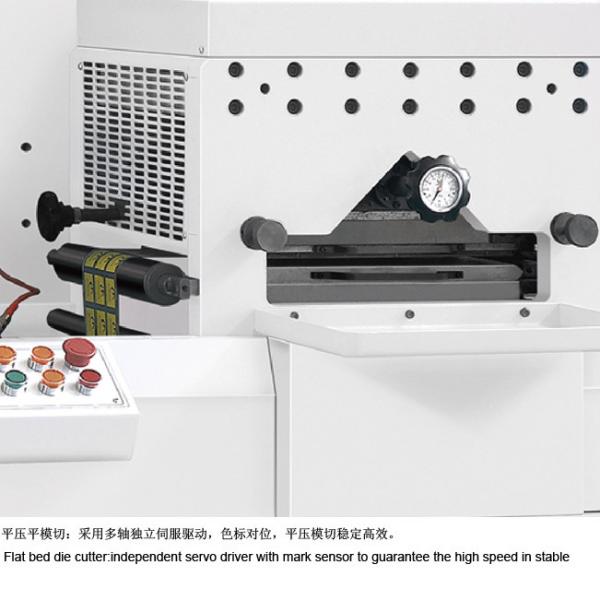

This die cutting machine is flat bedstructure, computer-servo system pull material.

The maximum speed can reach 300m/min, and functions such as slitting, cross-cutting, and hot stamping can be added. Feeding-die cutting-waste discharge-rewinding sheet cutting, all processes are completed by computer in one time.It is a good machine for efficient production.

Main features

A:Unwinding+closed loop tension control
B:Web Guider
C.Closed-loop tension control
D:Servo motors+Trio motion controller
E:Die cutting with slitter
F:HMI Touch screen operating system(Schneider+PLC)

Main Technical Specification:

Model
330 model
cut speed
300 time/min
Max unwinding diameter
330mm
Max web width
330mm
Max die-cut Length
50-310mm
Position accuracy
±0.1mm
Total power
11kw
Power voltage
380V, 3 phase (can make as your request)
Machine weight
About3000kg
Overall dimension
2.6(L)×1.2(W)×1.5(H)(m)

Material details:

material
paper label, foam tape, PVC label
cutting mould
 steel

Paper Flatbed Die Cutting Machines Web Guider for self adhesive label

Paper Flatbed Die Cutting Machines Web Guider for self adhesive labelPaper Flatbed Die Cutting Machines Web Guider for self adhesive labelPaper Flatbed Die Cutting Machines Web Guider for self adhesive label

FQA

1.Are you factory or trading company?


We are factory.


2.What is your after service?


We offer customer a lifetime service.


3.Do you have CE certificate?

Yes, we have CE certificate of our machines.

4.What is the shipping time?


Around 15-30 days, depend on different model.


5.What can I do if machine stop work?
You can email us, call us or online video calls, face to face solve problem.
If the spare parts or something broken, in the warranty time,
we offer free.
