Specifications
Brand Name :
ruiting
Model Number :
RTMQ-320
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 days
Delivery Time :
20 working days
Packaging Details :
wooden case
Warranty :
1 Year
Voltage :
380V
Condition :
New
After-sales service provided :
Engineers available to service machinery overseas
Computerized :
Yes
Description

320 Model Roll To Roll Kiss Cut Roll To Roll Adhesive Label Stciker Flat Bed Die Cutting Machine

Product Description

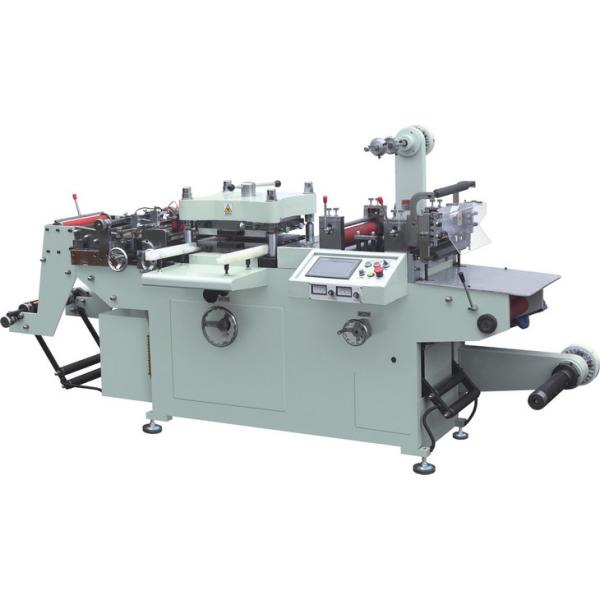

High speed flat bed die cutting machine with slitting machine

It is adopts micro-computer control for accurate flatten die cutting, material feeding, and sheeting, 3 points photocells for web-guiding and tracking.Die cutting, waste collecting and finished-material sheeting or rewinding are on one process.

The machine could be used for die cut adhesive paper, dacron label and laser hologram label.

It is the ideal auxiliary equipment of flexo printing machine, silk screen printing machine, gravure printing machine and hologram mark printing machine, and the most efficient unit for printing house.

Main features

1)Servo Motors are equipped for accurate material transmission.

2)Touch Screen for convenient operation

3)Frequency Converter used for speed regulation

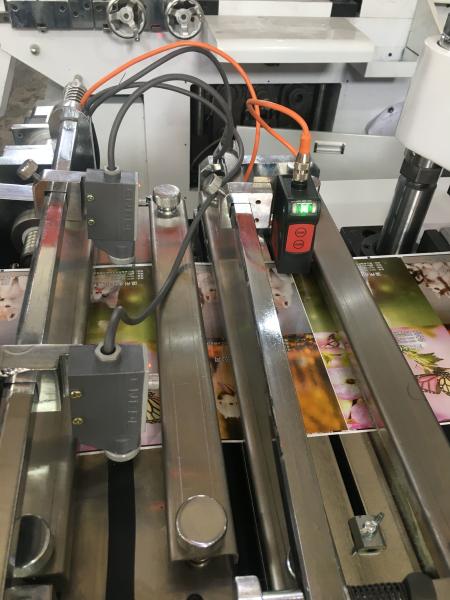

4)3 pcs of Photocells are used for web guiding

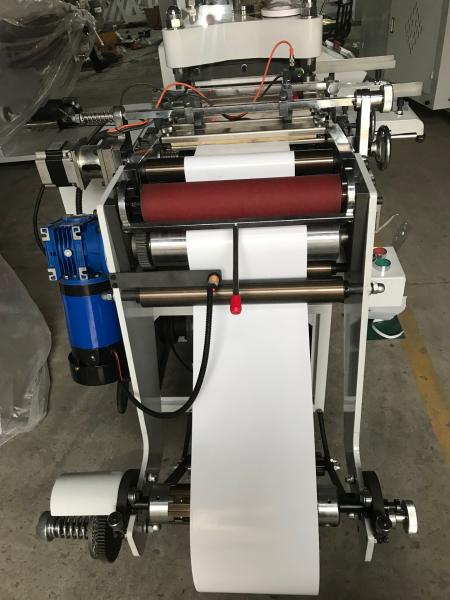

5)Unwind, sheeter device, rewinder are equipped for multi purpose.

Main Technical Specification:

Model 320 model
cut speed 20-180 time/min
Max unwinding diameter 500mm
Max web width 320mm
Max die-cut width 300mm
Max die-cut Length 290mm
Position accuracy ±0.1mm
Total power 3.5kw
Power voltage 220v±10%
Machine weight About 1700kg
Overall dimension 2.6(L)×1.0(W)×1.4(H)(m)

Material details:

D

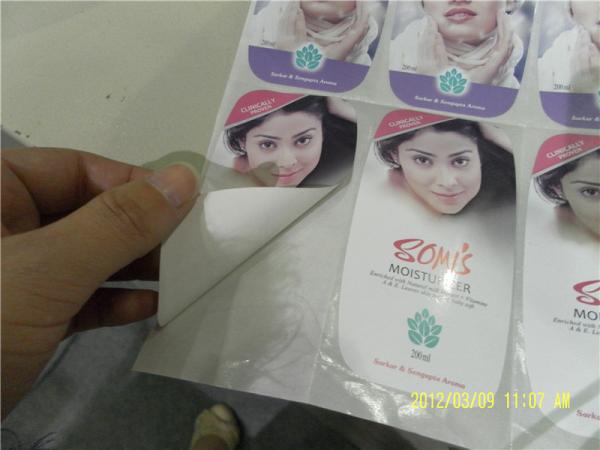

material paper label, foam tape, PVC label
cutting mould made by wooden

FQA

1.Are you factory or trading company?


We are factory.


2.What is your after service?


We offer customer a lifetime service.


3.Do you have CE certificate?

Yes, we have CE certificate of our machines.

4.What is the shipping time?


Around 15-30 days, depend on different model.


5.What can I do if machine stop work?
You can email us, call us or online video calls, face to face solve problem.
If the spare parts or something broken, in the warranty time,
we offer free.
