Lamination Flatbed Die Cutting Machines , 3.5kw Paper Die Punching Machine
Lamination Flatbed Die Cutting Machines , 3.5kw Paper Die Punching Machine
Lamination Flatbed Die Cutting Machines , 3.5kw Paper Die Punching Machine
Lamination Flatbed Die Cutting Machines , 3.5kw Paper Die Punching Machine
Lamination Flatbed Die Cutting Machines , 3.5kw Paper Die Punching Machine
Lamination Flatbed Die Cutting Machines , 3.5kw Paper Die Punching Machine
Specifications
Brand Name :
ruiting
Model Number :
RT-320D
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 days
Delivery Time :
20 working days
Packaging Details :
wooden case
Warranty :
1 Year
Voltage :
220v±10%
cut speed :
20-180 time/min
After-sales service provided :
Engineers available to service machinery overseas
Computerized :
Yes
Dimension(l*w*h) :
2.6(L)×1.0(W)×1.4(H)(m)
Weight :
About 1700kg
Max unwinding diameter :
500mm
Max die-cut width :
300mm
Max die-cut Length :
290mm
Description

Title

lamination stamping dies cutter die cutting punching machine

Product Description

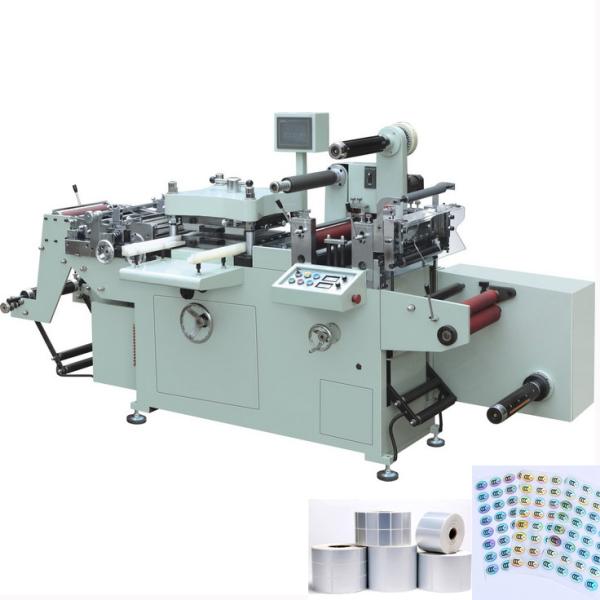

It is adopts micro-computer control for accurate flatten die cutting, material feeding, and sheeting, 3 points photocells forweb-guiding and tracking.
Die cutting, waste collecting and finished-material sheeting or rewinding are on one process.
The machine could be used for die cut adhesive paper, dacron label and laser hologram label.
It is the ideal auxiliary equipment of flexo printing machine, silk screen printing machine, gravure printing machine .

Main features

  • Servo Motors are equipped for accurate material transmission.
  • Touch Screen for convenient operation
  • Frequency Converter used for speed regulation
  • 3 pcs of Photocells are used for web guiding
  • Hot stamping device
  • Slitting device

Sheeter device, rewinder are equipped for multi purpose.

Main Technical Specification:

Model
320D model
cut speed
20-180 time/min
Max unwinding diameter
500mm
Max web width
320mm
Max die-cut width
300mm
Max die-cut Length
290mm
Position accuracy
±0.1mm
Total power
3.5kw
Power voltage
220v±10%
Machine weight
About 1700kg
Overall dimension
2.6(L)×1.0(W)×1.4(H)(m)

Material details:

material
paper label, foam tape, PVC label
cutting mould
 made by wooden

Lamination Flatbed Die Cutting Machines , 3.5kw Paper Die Punching MachineLamination Flatbed Die Cutting Machines , 3.5kw Paper Die Punching MachineLamination Flatbed Die Cutting Machines , 3.5kw Paper Die Punching Machine

FQA

1.Are you factory or trading company?


We are factory.


2.What is your after service?


We offer customer a lifetime service.


3.Do you have CE certificate?

Yes, we have CE certificate of our machines.

4.What is the shipping time?


Around 15-30 days, depend on different model.


5.What can I do if machine stop work?
You can email us, call us or online video calls, face to face solve problem.
If the spare parts or something broken, in the warranty time,
we offer free.
