Servo Motors Flatbed Die Cutting Machines With Label Hot Stamp
Servo Motors Flatbed Die Cutting Machines With Label Hot Stamp
Servo Motors Flatbed Die Cutting Machines With Label Hot Stamp
Servo Motors Flatbed Die Cutting Machines With Label Hot Stamp
Servo Motors Flatbed Die Cutting Machines With Label Hot Stamp
Servo Motors Flatbed Die Cutting Machines With Label Hot Stamp
Specifications
Brand Name :
ruiting
Model Number :
RTMQ-520
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 days
Delivery Time :
20 working days
Packaging Details :
wooden case
Warranty :
1 Year
Voltage :
380V, 3 phase (can make as your request)
Condition :
New
After-sales service provided :
Online operation video guidance and other
color :
white(can make as your request)
Dimension(l*w*h) :
2.6(L)×1.4(W)×1.4(H)(m)
Weight :
About 2000kg
Power(w) :
5.5kw
Max web width :
520mm
Max die-cut Length :
290mm
Description

Title

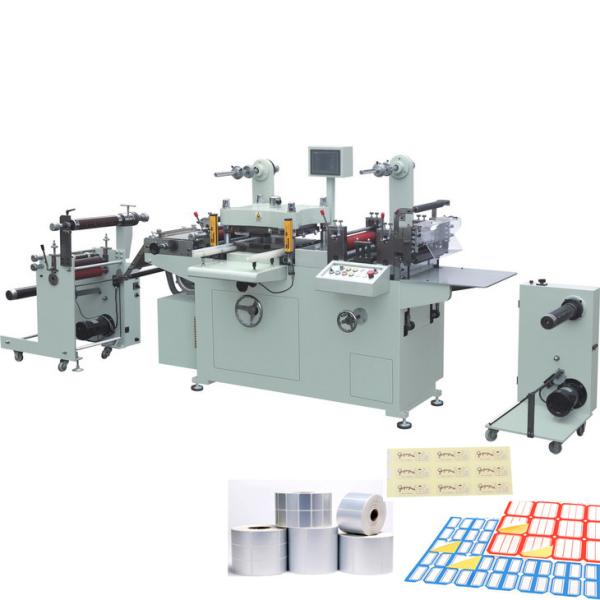

automatic high speed flatbed die-cutting machine with label hot stamp

Main features

1) Servo Motors are equipped for accurate material transmission.

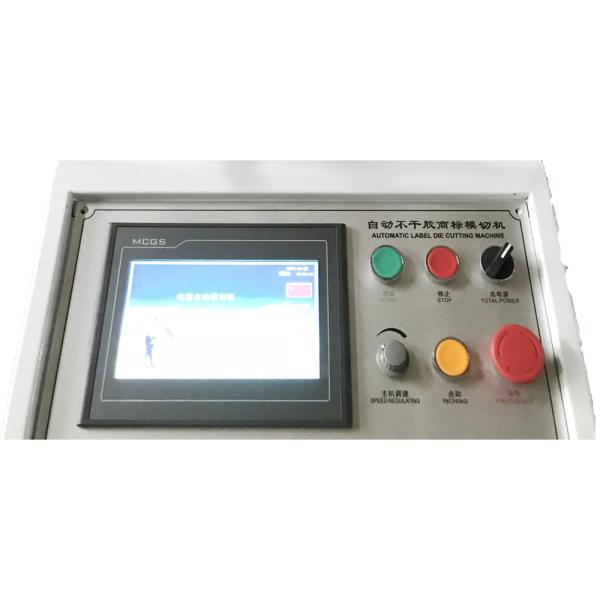

2) Touch Screen for convenient operation

3) Frequency Converter used for speed regulation

4) 3 pcs of Photocells are used for web guiding

5) Unwind, sheeter device, rewinder are equipped for multi purpose.

Product Description

It is adopts micro-computer control for accurate flatten die cutting, material feeding, and sheeting, 3 points photocells for web-guiding and tracking.Die cutting, waste collecting and finished-material sheeting or rewinding are on one process.

It can be used in combination with multiple types of printers. It is an indispensable machine on the label production line. It has functions such as hot stamping punching and laminating to make your products more beautiful and shiny. It is an ideal machine for processing self-adhesive labels and other products.

Main Technical Specification:

Model
520 model
cut speed
200 time/min
Max unwinding diameter
500mm
Max web width
520mm
Max die-cut width
500mm
Max die-cut Length
290mm
Position accuracy
±0.1mm
Total power
5.5kw
Power voltage
380V, 3 phase (can make as your request)
Machine weight
About 2000kg
Overall dimension
2.6(L)×1.4(W)×1.4(H)(m)

Material details:

material
paper label, foam tape, PVC label
cutting mould
made by wooden

Servo Motors Flatbed Die Cutting Machines With Label Hot Stamp

Servo Motors Flatbed Die Cutting Machines With Label Hot StampServo Motors Flatbed Die Cutting Machines With Label Hot Stamp

FQA

1.Are you factory or trading company?


We are factory.


2.What is your after service?


We offer customer a lifetime service.


3.Do you have CE certificate?

Yes, we have CE certificate of our machines.

4.What is the shipping time?


Around 15-30 days, depend on different model.


5.What can I do if machine stop work?
You can email us, call us or online video calls, face to face solve problem.
If the spare parts or something broken, in the warranty time,
we offer free.
