Specifications
Brand Name :
ruiting
Model Number :
RYIN320-4
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
25 sets/month
Delivery Time :
in 30 days after receiving the deposit
Packaging Details :
Wooden Case
Usage :
inline printer
Automatic grade :
automatic
Type :
Flexo printing machine
Dimensions(l*w*h) :
3800*1400*1500mm
Voltage :
380V,3phase
Warranty :
1 Year
Name :
4 Color 320mm Nonwoven Fabric Roll Printing Machine
Printing Color :
4 color
Application :
adhesive label paper,pvc film,aluminium foil
Max. material width :
320mm
Printing speed :
10-80m/min
Weight :
1800KGS
Description

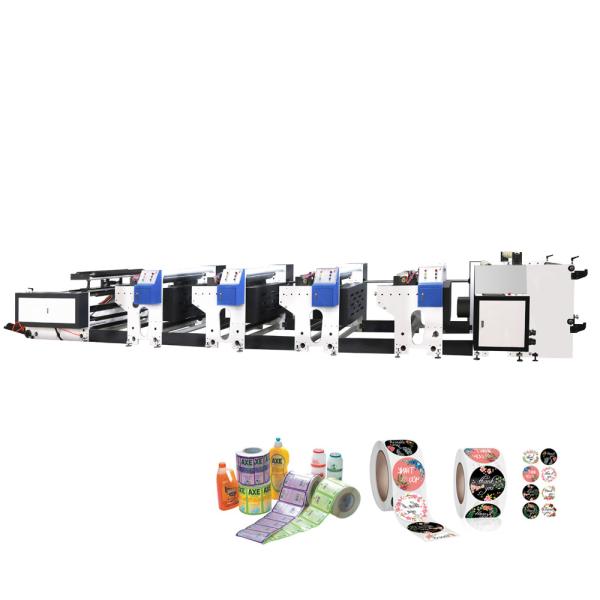

4 Color 320mm Nonwoven Fabric Roll Printing Machine

Main features

  • Ceramic anilox cylinder to transfer the ink
  • Automatic magnetic powder brake controller for unwinding & rewinding
  • Tension controller for unwinding
  • Tension controller for rewinding
  • Printing unit: 360°Plate-adjustment
  • IR dryer each printing unit

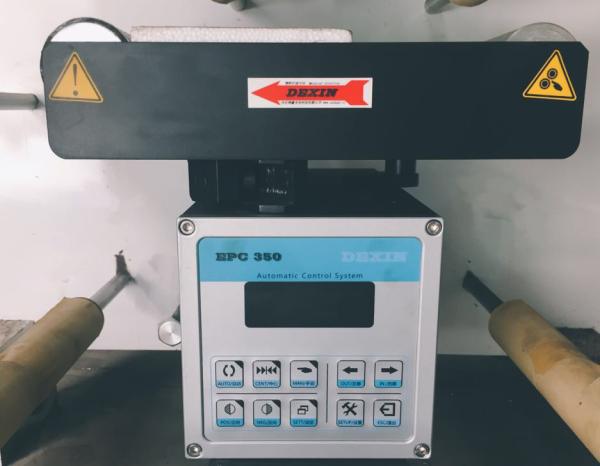

  • Web guide system in the machine
  • 3 inch air shaft both unwinding and rewinding
  • Frequency converter for speed controlling
  • 4 plate cylinders and 4 ceramic anilox rollers

Main technical specification:

Model RTIN-320-4
Printing speed 80m/minute
Printing color number 4 color
Max width of paper 320mm
Max printing wide 320mm
Max unwinding diameter 600mm
Max rewinding diameter 600mm
Printing length 175-635mm
Precision of overprint ±0.1mm
Overall dimension 3.8(L)×1.4(W)×1.5(H)m
Weight about 1800kg

Optional parts:(can add as your request)

  • Printing unit number, up to 10 colors;
  • turn bar device;
  • Slitting set
  • Video monitor
  • Rotary die cutting set
  • Cold laminating

Material details:

Printing material paper,foil, PVC,
Printing ink UV ink,water based ink
Printing plate thcikness 1.7mm
