Specifications
Brand Name :
ruiting
Model Number :
RYIN520-3
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
25 sets/month
Delivery Time :
in 30 days after receiving the deposit
Packaging Details :
Wooden Case
Usage :
horizontal flexo printer
Dimensions(l*w*h) :
2900*1200*1200mm
Voltage :
380V,3phase,50HZ
Warranty :
1 Year
Name :
3 Color 520mm Opp Film Horizontal Flexo Printer With UV
Printing Color :
3 color
Application :
film, aluminium foil
Max. material width :
520mm
Printing speed :
10-150m/min
Weight :
2200KGS
Description

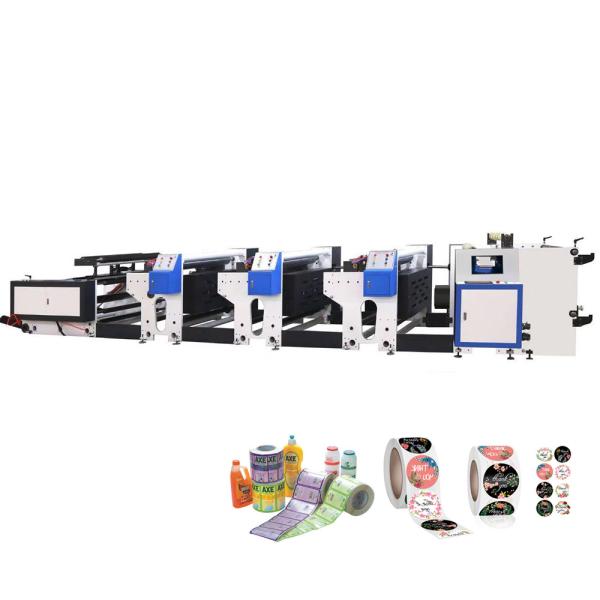

3 Color 520mm Opp Film Horizontal Flexo Printer With Touch Screen Operate

Main features

  • Unwind: Use auto loading system, Vector motor tension control system
  • Ceramic anilox cylinder to transfer the ink
  • Auto stop function when lacking material
  • Adopt ultrasonic web guide system
  • Printing unit: 360°Plate-adjustment
  • IR dryer for each printing unit
  • Auto clean printing plate system: when off the anilox roller, plate cylinder will tranfer ink on material, keep the printing plate clean.
  • 3 inch air shaft both unwinding and rewinding

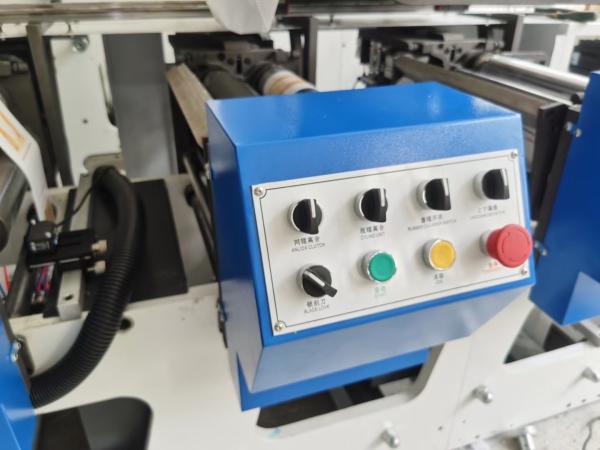

  • Touch screen display
  • Frequency converter for speed controlling
  • 3 plate cylinders and 3 ceramic anilox rollers

Main technical specification:

Model RTIN-520-3
Printing speed 150m/minute
Printing color number 3 color
Max width of paper 520mm
Max printing wide 520mm
Max unwinding diameter 600mm
Max rewinding diameter 600mm
Printing length 175-635mm
Precision of overprint ±0.1mm
Overall dimension 2.9(L)×1.2(W)×1.2(H)m
Weight about 2200kg

Optional parts:(can add as your request)

  • Printing unit number, up to 10 colors;
  • turn bar device;
  • Slitting set
  • Video monitor
  • Rotary die cutting set
  • Cold laminating

Material details:

Printing material paper,foil, PVC,
Printing ink UV ink,water based ink
Printing plate thcikness 1.7mm
