Specifications
Brand Name :
Ruiting
Model Number :
RY-420
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 sets per month
Delivery Time :
45 working days
Packaging Details :
wooden case
Description

Description:

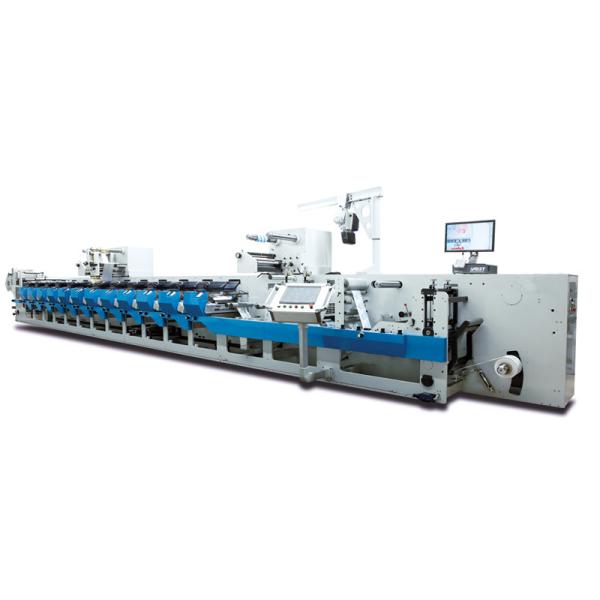

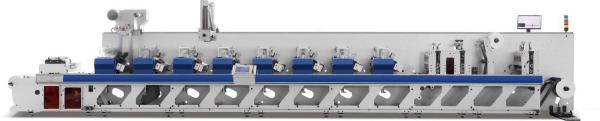

420 model 8 color inline unit type paper plastic film flexograhic printing machine with rotary die cut video monitor. The machine is the inline series flexo printing machine, it can print paper rolls, sticker label, paper bag, plastic film, PET film, aluminium foil and so one material

Main features

  • Ceramic anilox cylinder to transfer the ink
  • Automatic magnetic powder brake controller for unwinding & rewinding
  • Tension controller for unwinding
  • Tension controller for rewinding

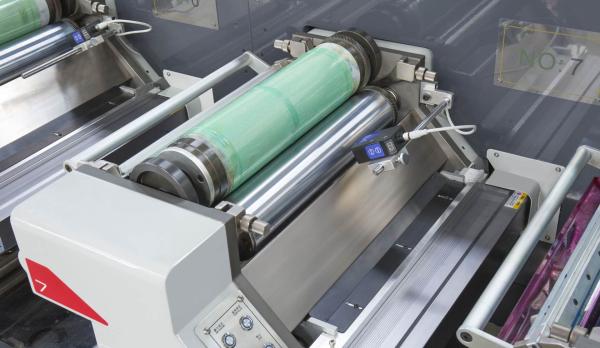

  • Printing unit: 360°Plate-adjustment
  • IR dryer and UV dryer for each printing unit
  • Corona treatment set

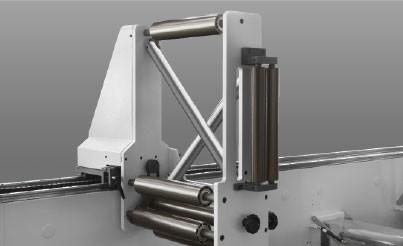

  • Web guide system in the machine
  • 3 inch air shaft both unwinding and rewinding
  • Touch screen display
  • With rotary die cutting
  • Video monitor system
  • Frequency converter for speed controlling
  • 8 plate cylinders and 8 ceramic anilox rollers

Main technical specification:

Printing speed 160m/minute
Printing color number 8 color
Max width of paper 420mm
Max printing wide 420mm
Max.printing girth 190-650mm
Max unwinding diameter 600mm
Max rewinding diameter 600mm
Precision of overprint ±0.1mm
Circumference of rubber sheet roller 3.175mm
Overall dimension 6000(L)×1300(W)×1200(H)m
Weight 4000KG
Power supply 380V,3 phase,50HZ

Optional parts:

1)Anilox cylinder specification made by request;

2)Plate cylinder specification made by request;

3)Double sides printing of material-reversing device;

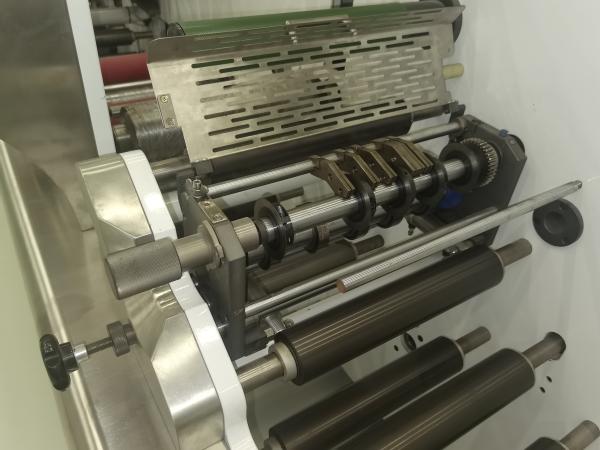

4)Slitting set

5)Sheet conveyor

6)Cold laminating

7)Cold stamping

8)Delam Relam

9)Punching

10)Creasing

11)Folding

Material details:

Printing material paper,foil, PVC,
Printing ink water based ink,UV ink
Printing plate thcikness 1.7mm( can customize)

FQA

1.Are you factory or trading company?


We are factory.


2.What is your after service?


We offer customer a lifetime service.


3.Do you have CE certificate?

Yes, we have CE certificate of our machines.

4.What is the shipping time?


Around 15-30 days, depend on different model.


5.What can I do if machine stop work?
You can email us, call us or online video calls, face to face solve problem.
If the spare parts or something broken, in the warranty time,
we offer free.
