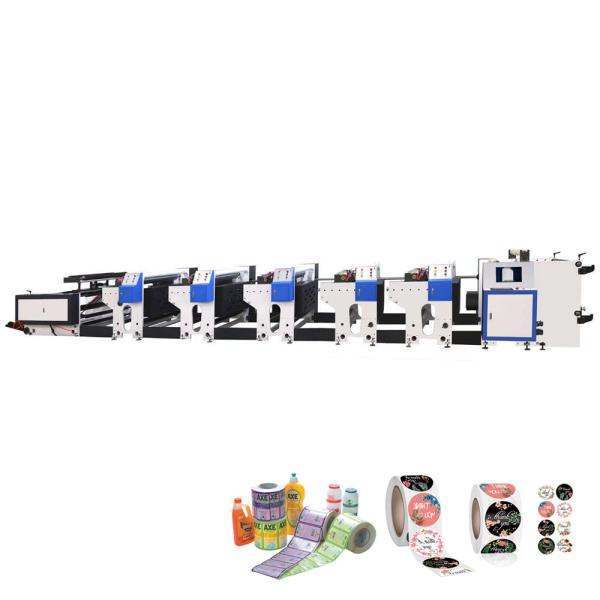

4 Color 520mm Thermal Paper Printing Machine With Auto Loading System
4 Color 520mm Thermal Paper Printing Machine With Auto Loading System
4 Color 520mm Thermal Paper Printing Machine With Auto Loading System
4 Color 520mm Thermal Paper Printing Machine With Auto Loading System
4 Color 520mm Thermal Paper Printing Machine With Auto Loading System
4 Color 520mm Thermal Paper Printing Machine With Auto Loading System
4 Color 520mm Thermal Paper Printing Machine With Auto Loading System
4 Color 520mm Thermal Paper Printing Machine With Auto Loading System
Specifications
Brand Name :
ruiting
Model Number :
RYIN520-4
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
25 sets/month
Delivery Time :
in 30 days after receiving the deposit
Packaging Details :
Wooden Case
Type :
Flexo printing machine
Dimensions(l*w*h) :
3900*1200*1500mm
Voltage :
380V,3phase,50HZ
Warranty :
1 Year
Name :
4 Color 520mm Thermal Paper Printing Machine With Auto Loading System
Printing Color :
4 color
Application :
thermal paper,adhesive label paper,pvc film,aluminium foil
Max. material width :
520mm
Printing speed :
10-80m/min
Weight :
3200KGS
Description

4 Color 520mm Thermal Paper Printing Machine With Auto Loading System

Main features

(1)Printing girth 190.5-635mm, filling the blank of the stack type flexo printing machine, trademark printng machine can not print long length

(2)Magnetic powder brake controller for unwinding & rewinding

(3)Printing unit: 360°Plate-adjustment

(4)IR dryer for each printing unit.

(5)With web guide system

(6)Use water based in( UV ink) , which max. Speed can be 90m/min

(7)The ink rollers will be separated from the printing roller, and keep running, when machine stopped.

(8)Frequency converter for speed controlling

(9)Feed paper form roll material, print,wen guide, dry automatically by infrared ray and rewinding completed in one time.

(10)It is an ideal machine for printing trade invoice and top-grade adhesive label.

Main technical specification:

Model RTIN-520-4
Printing speed 80m/minute
Printing color number 4 color
Max width of paper 520mm
Max printing wide 520mm
Max unwinding diameter 1000mm
Max rewinding diameter 1000mm
Printing length 175-635mm
Precision of overprint ±0.1mm
Overall dimension 3.9(L)×1.2(W)×1.5(H)m
Weight about 3200kg

Optional parts:(can add as your request)

Printing unit number, up to 10 colors;turn bar device;Slitting setVideo monitorRotary die cutting setCold laminating

Material details:

Printing material paper,foil, PVC,
Printing ink UV ink
Printing plate thcikness 1.7mm

4 Color 520mm Thermal Paper Printing Machine With Auto Loading System4 Color 520mm Thermal Paper Printing Machine With Auto Loading System

4 Color 520mm Thermal Paper Printing Machine With Auto Loading System

4 Color 520mm Thermal Paper Printing Machine With Auto Loading System4 Color 520mm Thermal Paper Printing Machine With Auto Loading System4 Color 520mm Thermal Paper Printing Machine With Auto Loading System

4 Color 520mm Thermal Paper Printing Machine With Auto Loading System
