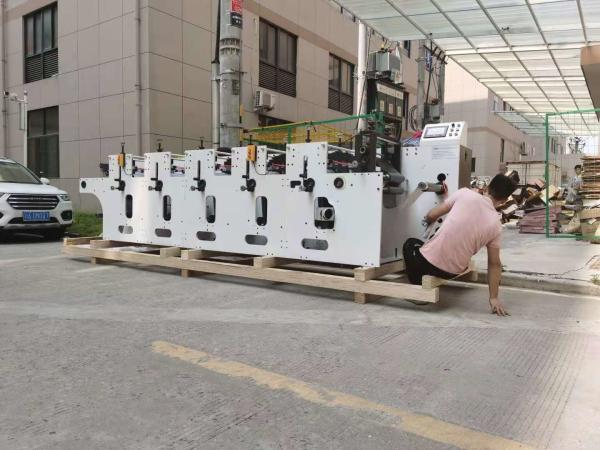

320mm 5 Color Narrow Web Printing Machine for Water Bottle Label
320mm 5 Color Narrow Web Printing Machine for Water Bottle Label
320mm 5 Color Narrow Web Printing Machine for Water Bottle Label
320mm 5 Color Narrow Web Printing Machine for Water Bottle Label
320mm 5 Color Narrow Web Printing Machine for Water Bottle Label
320mm 5 Color Narrow Web Printing Machine for Water Bottle Label
320mm 5 Color Narrow Web Printing Machine for Water Bottle Label
320mm 5 Color Narrow Web Printing Machine for Water Bottle Label
Specifications
Brand Name :
ruiting
Model Number :
RYIN320-5
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
25 sets/month
Delivery Time :
in 30 days after receiving the deposit
Packaging Details :
Wooden Case
Dimensions(l*w*h) :
3700*900*1200mm
Voltage :
380V/220V
Warranty :
1 Year
Name :
320 Model 4 Color Water Bottle Label Automatic Flexo Printing Machine
Printing Color :
5 color
Application :
pvc film,aluminium foil,coated paper
Max. material width :
320mm
Printing speed :
100m/min
Weight :
2700kg
Type :
Flexographic Printer
Description

320mm 5 Color Water Bottle Label Automatic Flexo Printing Machine

Feature
1.From the discharge to the receipt of the short distance.
2.The ceramic stick is equipped with a scraper,which is printed and moist,and had a clear color.
3.Repeatedly printing the circumference of 190.5-635mm,filling the blank of the cascading flexographic printing machine, the slanting trademark printing machine,the petal printing machine and the printing length.
4.The use of gear color to solve the 360 degree coloring device gap,assembly,wear,ect,affecting the color accuracy and printing instability.
5.From left to right:coil feeding,printing,automatic infrared drying winding a coherent completion.
6.Water-based ink (UV ink)printing,pollution-free,environmentally friendly,printing speed caries according to the network
cable,the speed is also different,the fastest speed of printing labels is 90 meters per minute.
7.Printing bills,labels,cardboard,high-grade stickers,clothing tags,ect.
8.Printing materials:paper 20-250gsm self adhesive soft coil and other materials.

Material details:

Printing material paper,foil, PVC,film
Printing ink water based ink
Printing plate thcikness 1.7mm

Optional parts:(can add as your request)

1.Anilox cylinder specification made by request;

2.Plate cylinder specification made by request;

3.Double sides printing of material-reversing device;

4.Slitting set

5.Sheet conveyor

6.Cold laminating

7.Cold stamping

8.Delam Relam

9.Punching

10.Creasing

11.Folding

Main technical specification:

Model RTIN-320-5
Printing speed 100m/minute
Printing color number 5 color
Max width of paper 320mm
Max printing wide 320mm
Max unwinding diameter 600mm
Max rewinding diameter 600mm
Printing length 175-635mm
Precision of overprint ±0.1mm
Overall dimension 3.7(L)×0.9(W)×1.2(H)m
Weight about 2700kg
