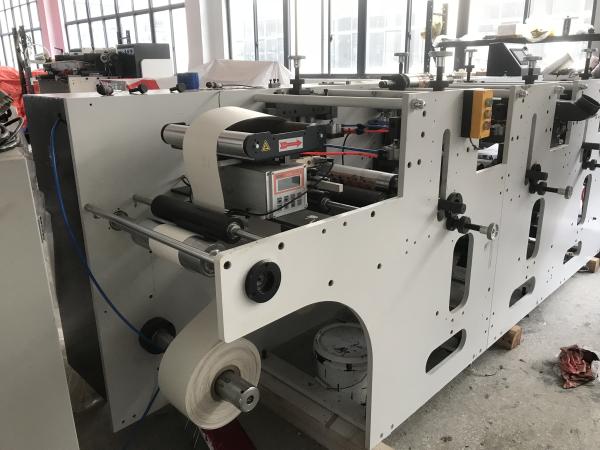

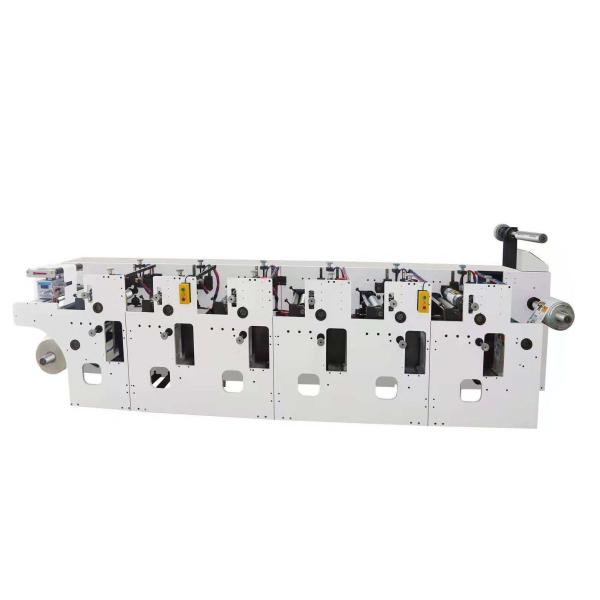

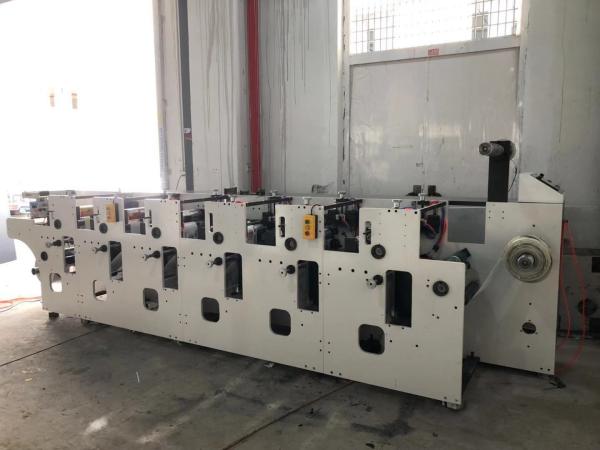

6 colour Narrow Web Flexo Printing Machine For Kraft Post Paper
6 colour Narrow Web Flexo Printing Machine For Kraft Post Paper
6 colour Narrow Web Flexo Printing Machine For Kraft Post Paper
6 colour Narrow Web Flexo Printing Machine For Kraft Post Paper
6 colour Narrow Web Flexo Printing Machine For Kraft Post Paper
6 colour Narrow Web Flexo Printing Machine For Kraft Post Paper
6 colour Narrow Web Flexo Printing Machine For Kraft Post Paper
6 colour Narrow Web Flexo Printing Machine For Kraft Post Paper
Specifications
Brand Name :
ruiting
Model Number :
RYIN210-6
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 sets/month
Delivery Time :
in 30 days after receiving the deposit
Packaging Details :
Wooden Case
Usage :
flexo printer
Dimensions(l*w*h) :
4700*1200*1200mm
Voltage :
380V,3phase,50HZ
Warranty :
1 Year
Name :
6 colour flexo printing machine for kraft post paper
Printing Color :
6 color
Application :
Advertising, cosmetics, medicines, daily necessities
Max. material width :
210mm
Printing speed :
100m/min
Weight :
3200kg
Description

6 colour flexo printing machine for kraft post paper

Advertising, cosmetics, medicines, daily necessities

Main features

(1)Printing girth 190.5-635mm, filling the blank of the stack type flexo printing machine, trademark printng machine can not print long length

(2)Magnetic powder brake controller for unwinding & rewinding

(3)Printing unit: 360°Plate-adjustment

(4)IR dryer for each printing unit.

(5)With web guide system

(6)Use water based in( UV ink) , which max. Speed can be 10m/min

(7)The ink rollers will be separated from the printing roller, and keep running, when machine stopped.

(8)Frequency converter for speed controlling

(9)Feed paper form roll material, print,wen guide, dry automatically by infrared ray and rewinding completed in one time.

(10)It is an ideal machine for printing trade invoice and top-grade adhesive label.

Main technical specification:

Model RTIN-210-6
Printing speed 100m/minute
Printing color number 6 color
Max width of paper 210mm
Max printing wide 210mm
Max unwinding diameter 600mm
Max rewinding diameter 600mm
Printing length 175-635mm
Precision of overprint ±0.1mm
Overall dimension 4.7(L)×1.2(W)×1.2(H)m
Weight about 3200kg

Optional parts:(can add as your request)

  • Printing unit number, up to 10 colors;
  • UV system
  • turn bar device;
  • Slitting set
  • Video monitor
  • Rotary die cutting set
  • Cold laminating

Material details:

Printing material plastic,paper,foil, PVC,
Printing ink UV ink
Printing plate thcikness 1.7mm
