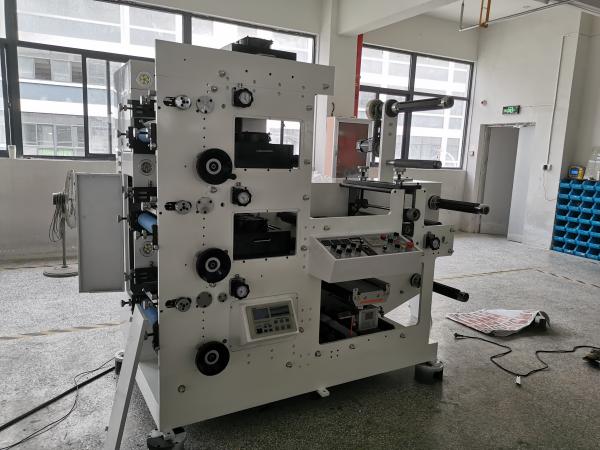

Water Based Ink Narrow Web Flexo Printing Machine 3 Colour 320mm For Kraft Paper
Water Based Ink Narrow Web Flexo Printing Machine 3 Colour 320mm For Kraft Paper
Water Based Ink Narrow Web Flexo Printing Machine 3 Colour 320mm For Kraft Paper
Water Based Ink Narrow Web Flexo Printing Machine 3 Colour 320mm For Kraft Paper
Water Based Ink Narrow Web Flexo Printing Machine 3 Colour 320mm For Kraft Paper
Water Based Ink Narrow Web Flexo Printing Machine 3 Colour 320mm For Kraft Paper
Water Based Ink Narrow Web Flexo Printing Machine 3 Colour 320mm For Kraft Paper
Water Based Ink Narrow Web Flexo Printing Machine 3 Colour 320mm For Kraft Paper
Specifications
Brand Name :
ruiting
Model Number :
RTRY-320-3
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 sets/month
Delivery Time :
20 working days
Packaging Details :
wooden case
Usage :
Paper Printer
Voltage :
220/380v
Weight :
960kgs
Warranty :
1 Year
Ink type :
water based ink,uv ink
Product name :
3 Colour 320mm Water Based Ink Kraft Paper Flexo Printing Equipment
total color :
3 color
Dimensions(l*w*h) :
2m*1.1*1.8m
Description

3 Colour 320mm Water Based Ink Kraft Paper Flexo Printing Equipment

Material details:

Printing material paper,foil, PVC,
Printing ink water based ink/UV ink
Printing plate thcikness 1.7mm

Optional parts:(can add as your request)

  • Printing unit number, up to 8 colors;
  • turn bar device;
  • Slitting set
  • Video monitor
  • Rotary die cutting set

Description:

  • Ceramic anilox cylinder to transfer the ink
  • Automatic magnetic powder brake controller for unwinding & rewinding
  • Tension controller for unwinding
  • Tension controller for rewinding
  • Printing unit: 360°Plate-adjustment
  • Both UV dryer and IR dryer in the machine
  • With cold foil set
  • The ink rollers will be separated from the printing roller, and keep running, when machine stopped.
  • Frequency inverter for speed controlling
  • Feed paper form roll material, print, coating, dry automatically by infrared ray and rewinding completed in one time.
  • It is an ideal machine for printing trade invoice and top-grade adhesive label paper, foil, PVC and so on material.

Main technical specification:

Model RTRY-320
Printing speed 10-60m/minute
Printing color number 3 color
Max width of paper 320mm
Max printing wide 310mm
Max unwinding diameter 500mm
Max rewinding diameter 500mm
Printing length 175-320mm
Thickness of flexo plate 1.7mm
Precision of overprint ±0.1mm
Overall dimension 2.0(L)×1.1(W)×1.8(H)m
Weight about 950kg

Water Based Ink Narrow Web Flexo Printing Machine 3 Colour 320mm For Kraft PaperWater Based Ink Narrow Web Flexo Printing Machine 3 Colour 320mm For Kraft PaperWater Based Ink Narrow Web Flexo Printing Machine 3 Colour 320mm For Kraft PaperWater Based Ink Narrow Web Flexo Printing Machine 3 Colour 320mm For Kraft Paper

Water Based Ink Narrow Web Flexo Printing Machine 3 Colour 320mm For Kraft Paper

Water Based Ink Narrow Web Flexo Printing Machine 3 Colour 320mm For Kraft Paper

Water Based Ink Narrow Web Flexo Printing Machine 3 Colour 320mm For Kraft Paper

Water Based Ink Narrow Web Flexo Printing Machine 3 Colour 320mm For Kraft Paper

Water Based Ink Narrow Web Flexo Printing Machine 3 Colour 320mm For Kraft Paper
