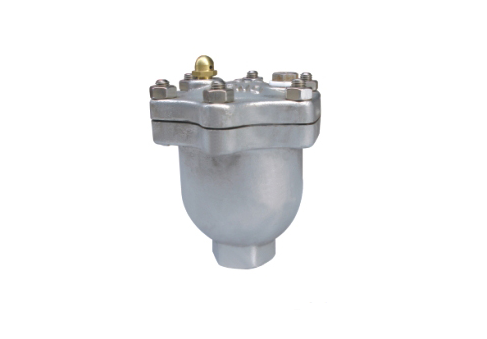

2 Inch Air Relief Valve Stainless Steel BSPT Threaded With Single Ball
2 Inch Air Relief Valve Stainless Steel BSPT Threaded With Single Ball
Specifications
Brand Name :
TEYI
Model Number :
ARVX
Certification :
CE/API/ISO/TS
Place of Origin :
China
MOQ :
1-10PCS
Price :
negotiation
Payment Terms :
L/C at sight, T/T, Westem Union
Supply Ability :
5000PCS per month
Packaging Details :
Packed in carton firstly, and then reinforced with wooden case for outer packing
Product Name :
Single Ball Air Release Valve
Material :
Stainless Steel 304/316
Size :
DN15 to DN50
Pressure :
PN6 to PN25
Connect End :
BSPT/BSP/NPT/DIN
Medium :
Water, Oil. Gas, Steam
Working Temp. :
-20℃ to 180 ℃
Inspection Standard :
API 598
Description

2 Inch Air Relief Valve Stainless Steel BSPT Threaded With Single Ball

Products Description

Air Release Valves function to release air pockets that collect at each high point of all pressured pipeline. Air Release VAlves can open against internal pressure, because the internal lever mechanism multiplies the float force to be greater than the internal pressure. This greater force opens the orifice whenever air pockets collect in the valve. Air Release Valves are essential for pipeline efficiency and water hammer protection.

Main part material

No. Name Material
1 Body Stainless Steel 304/316
2 Cover Stainless Steel 304/316
3 Ball Stainless Steel 304/316
4 Yoke Stainless Steel 304/316
5 Yoke Stainless Steel 304/316


2 Inch Air Relief Valve Stainless Steel BSPT Threaded With Single Ball

Main Dimensions(mm)

Size G Outside Air relief size Ball H
DN15 1/2" 1/4" 1.6 125 127
DN20 3/4" 1/4" 1.6 125 127
DN25 1" 1/4" 1.6 125 127
