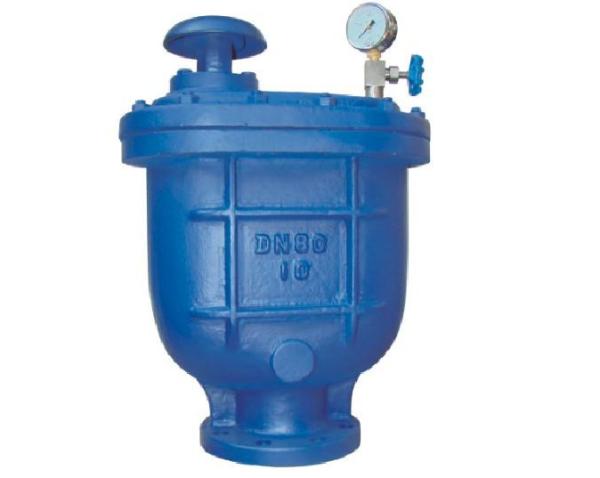

Pipeline Air Release Valves For Water Systems Bonnet Cast Iron
Pipeline Air Release Valves For Water Systems Bonnet Cast Iron
Specifications
Brand Name :
TEYI
Model Number :
CARX
Certification :
CE/API/ISO/TS
Place of Origin :
China
MOQ :
1-10PCS
Price :
negotiation
Payment Terms :
L/C at sight, T/T, Westem Union
Supply Ability :
5000PCS per month
Packaging Details :
Packed in carton firstly, and then reinforced with wooden case for outer packing
Product Name :
Flanged Combination Air Release Valve
Material :
Cast Iron
Size :
DN15 to DN200
Pressure :
PN6 to PN16
Connect End :
RF, FF
Medium :
Water, Oil. Gas, Steam
Working Temp. :
0 to 180 ℃
Inspection Standard :
API 598
Description

Pipeline Air Release Valves For Water Systems Bonnet Cast Iron​​

Products Description

Air Release Valves function to release air pockets that collect at each high point of all pressured pipeline. Air Release VAlves can open against internal pressure, because the internal lever mechanism multiplies the float force to be greater than the internal pressure. This greater force opens the orifice whenever air pockets collect in the valve. Air Release Valves are essential for pipeline efficiency and water hammer protection.

Main part material

No. Name Material
1 Body Cast Iron
2 Bonnet Cast Iron
3 Ball Stainless Steel
4 Yoke Stainless Steel
5 Yoke Brass


Pipeline Air Release Valves For Water Systems Bonnet Cast Iron

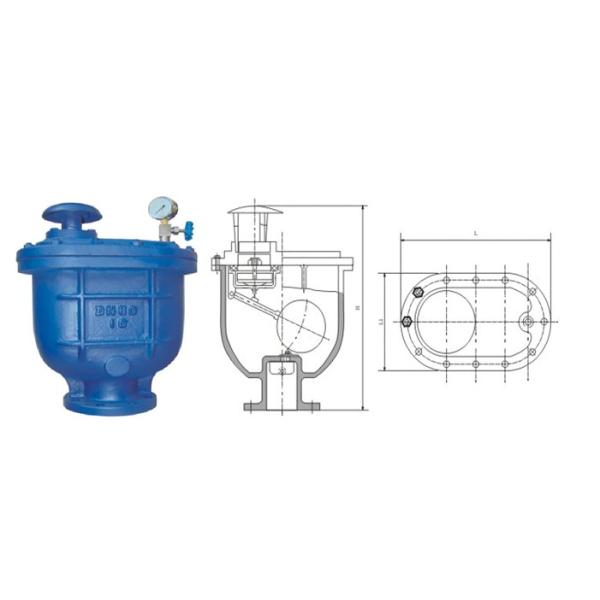

Main Dimensions(mm)

DN D D1 D2 L L1 H Z-фd
50 160 125 102 325 205 450 4-14
80 196 160 138 365 235 500 4-18
100 215 180 158 385 258 535 8-18

Product tags

cast iron air release valve

,

stainless steel air release valve

,

brass air release valve
