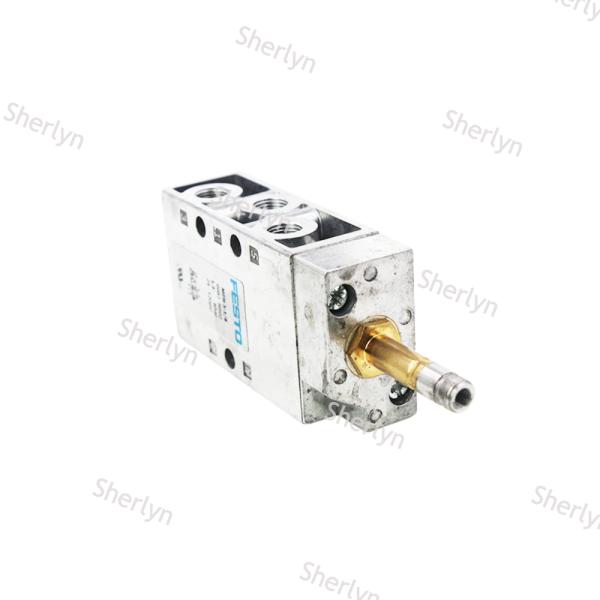

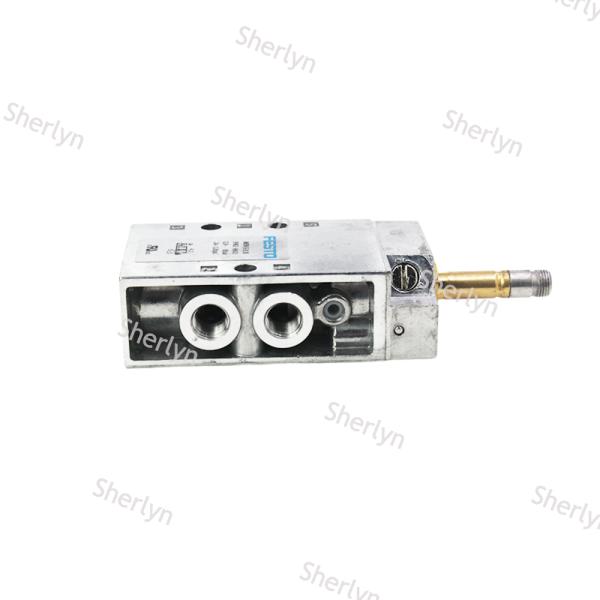

Product Description:

The core attributes of FESTO Tiger Valve MFH series are as follows:
Valve function: There are mainly 3/2-way (normally closed, normally open, sometimes switchable) and 5/2-way (single electric control with mechanical spring reset, dual electric control).

Main parameters:
Interface and flow rate: G1/8 (500 l/min), G1/4 (800 l/min or 1300-1600 l/min16), G1/2 (3700 l/min), G3/4 (7500 l/min).
Work pressure: commonly 0-8 bar or 2-10 bar, some models (such as MFH-3- * - S) support -0.95 to 10 bar.
Pilot mode: internal pilot or external pilot (model with suffix "- S", requires independent pilot pipeline, pressure range usually 0-8 bar).
Design structure: Sturdy lifting valve seat (seat valve), sealing material is usually NBR, and the valve body is made of die-cast aluminum.
Protection level: IP65.
Response time: Fast, usually in milliseconds (e.g. switch time<40ms).
Temperature range: The medium temperature is usually -10 °C to +60 °C, and the ambient temperature is usually -5 °C to +40 °C.

Applications:

The automotive manufacturing industry utilizes pneumatic device control for various processes such as welding and final assembly production lines.

In the packaging machinery sector, pneumatic control is essential for actions including material gripping, positioning, and filling.

Material handling and automated assembly lines rely on pneumatic control to operate actuators like cylinders and vacuum suction cups.

Pneumatic control is also crucial in other industrial fields that demand high-quality performance.

Technical Data

• Valve function5/2, monostable
• Actuation typeElectrical
• Width26 mm
• Standard nominal flow rate500 l/min
• Pneumatic working portG1/8
• Operating voltageVia solenoid coil, to be ordered separately
• Operating pressure0.18 MPa ... 0.8 MPa
• Operating pressure1.8 bar ... 8 bar
• Structural designPlate seat
• Reset methodMechanical spring
• Certificationc UL us - Recognized (OL)
• Degree of protectionIP65
• Nominal width5 mm
• Width dimension27 mm
• Exhaust air functionWith flow control option

Support and Services:

Festo Solenoid Valve product technical support and services include:

- Expert assistance with product selection, installation, and troubleshooting

- Comprehensive product documentation and manuals for easy reference

- Online resources such as FAQs, troubleshooting guides, and video tutorials

- Warranty coverage and repair services for any product defects

- Training programs and workshops to enhance knowledge and skills in using Festo Solenoid Valves

Packing and Shipping:

Product Packaging:

The Festo Solenoid Valve is carefully packaged in a sturdy cardboard box to ensure its safe transportation. The valve is securely placed within the box with adequate cushioning to prevent any damage during shipping.

Shipping:

Once your order is confirmed, the Festo Solenoid Valve will be shipped promptly using a reliable courier service. You will receive a tracking number to monitor the status of your delivery. The valve is packed and sealed properly to protect it from any external factors during transit.
